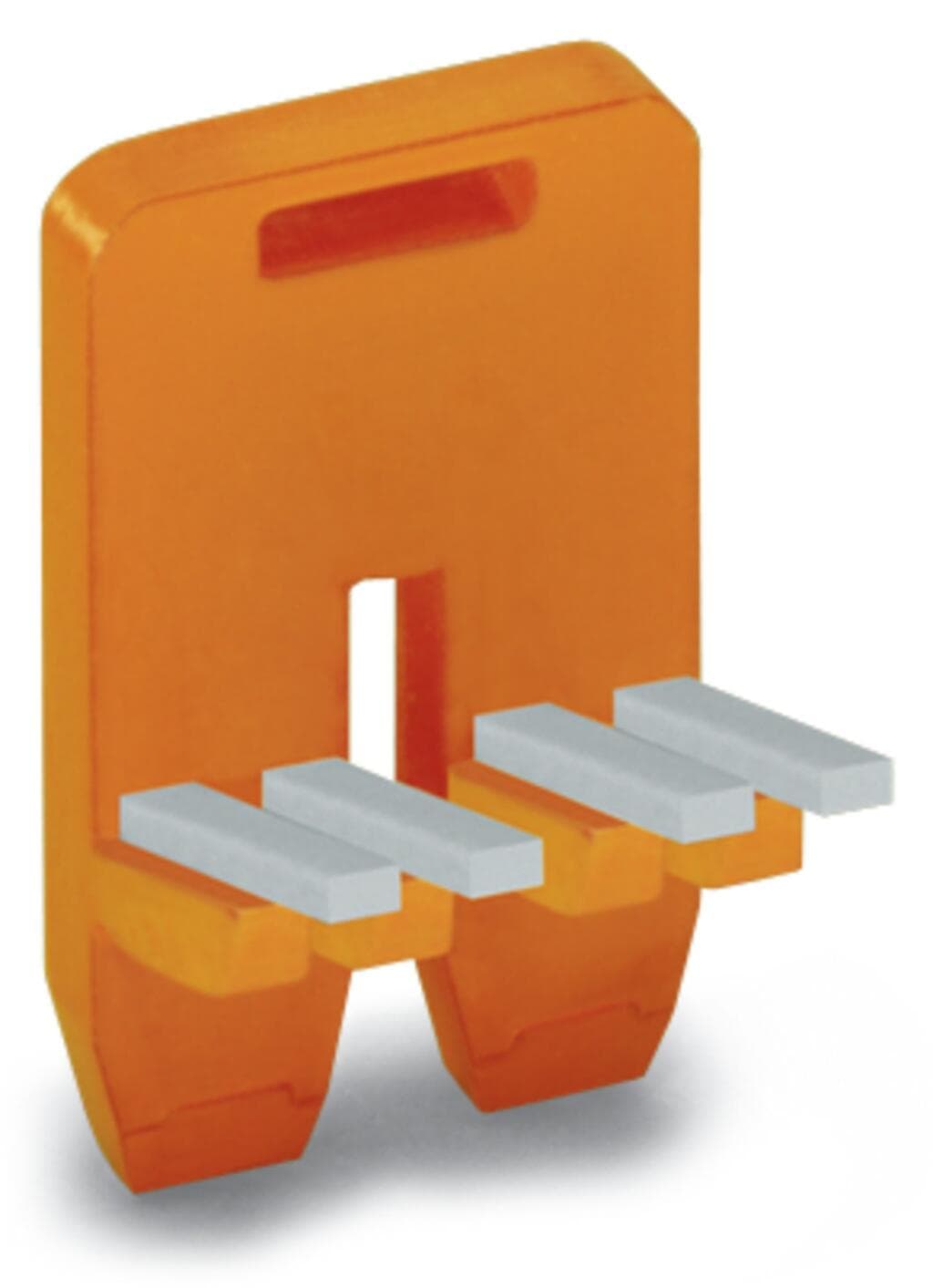

Product Model
282-442
Selling Points
- 1Insulated for safe electrical connections.
- 2Rated for 30A nominal current.
- 3Designed for 2-conductor transverse switching terminal blocks.
- 4Compliant with ROHS standards.
- 5Available in packs of 10 units.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Jumper assignment | 1-2 | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.022MJ | Weight | 2.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454888312 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 30A |
Specifications may be subject to change without notice
