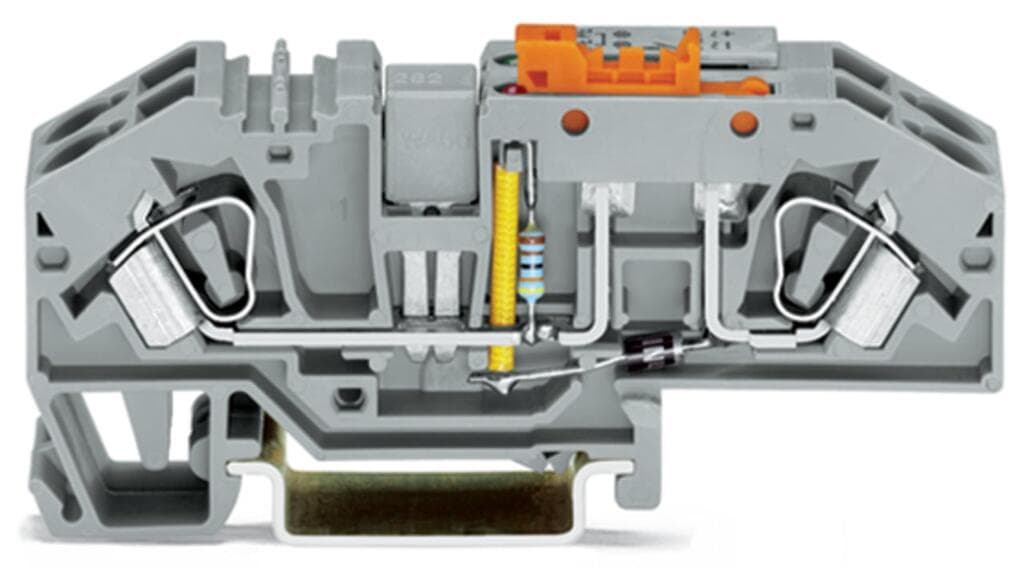

Product Model
282-641
Selling Points
- 1Ground conductor disconnect terminal block with test option
- 2Orange disconnect link for easy identification
- 348V compatible for various electrical applications
- 4CAGE CLAMP® for secure and reliable connections
- 5Gray housing for insulation and durability
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 4 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 37?mm?/ 1.457?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.729MJ | Weight | 40.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821666028 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | cc502cf4-5832-424d-901e-e7d577d92157 |
SCIP notification number (Belgium) | abb9ddb4-df70-463e-b2a9-0bf0b2f33b68 | SCIP notification number (Bulgaria) | 0e34abb9-0eb5-4318-a193-b195fd2f5d7d |
SCIP notification number (Czech Republic) | 58122815-fab2-4173-bf26-c0a97479f1b1 | SCIP notification number (Denmark) | 87142f1c-8dd0-4df7-9b22-9c08ddba2e1a |
SCIP notification number (Finland) | e5c6649f-8e1f-4716-8c41-5e0b7c84ba66 | SCIP notification number (France) | 3afc8f4a-fcad-495c-b1b7-bb2285b1c2af |
SCIP notification number (Germany) | 027e971e-4073-42c2-b595-1c0c35e0bedf | SCIP notification number (Hungary) | 13b367cd-e1dc-40d2-a702-7a1a3ea54163 |
SCIP notification number (Italy) | a3efdf5c-8ac5-42ba-84aa-1a4472ab78e1 | SCIP notification number (Netherlands) | d1f679b7-cd30-4f68-9aaa-5240d952ba71 |
SCIP notification number (Poland) | 8c86e5bd-e626-4624-99a8-a115ff0caa3e | SCIP notification number (Romania) | 8317d2f7-5b83-483b-94b0-a2cbb9f39bf1 |
SCIP notification number (Sweden) | 29ad6ab0-8ebb-4011-a54c-fce143bb0fd1 | Operation status indicator | 48 V |
Power loss, per pole (potential) | 0.702W | Rated current I<sub>N</sub> for specified power loss | 30A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
