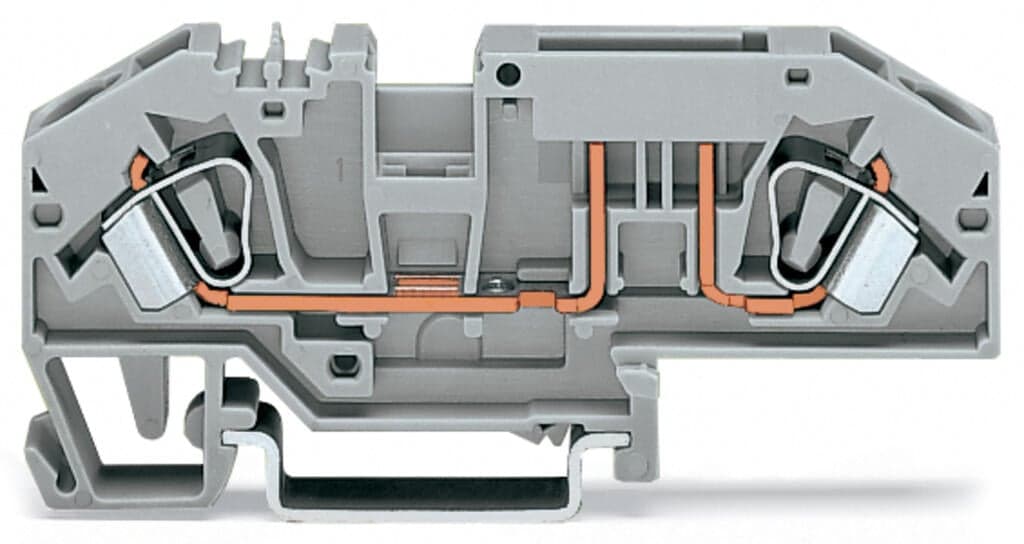

Product Model
282-696
Selling Points
- 1Secure Connections: Utilizes WAGO's reliable CAGE CLAMP technology for efficient and secure wire connections.
- 2DIN Rail Mounting: Designed for easy mounting on DIN-35 rail, ensuring compact and organized installations.
- 3Automotive Compatibility: Suitable for mini-automotive blade-style fuses with a test option without blown fuse indication.
- 4Compliance Standards: Recognized by UL and CSA, ensuring high safety standards in industrial applications.
- 5Versatile Wire Size Range: Accommodates wire sizes from 24AWG to 10AWG, offering flexibility in various electrical setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 33.5?mm?/ 1.319?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.293MJ | Weight | 17.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-16 |
eCl@ss 9.0 | 27-14-11-16 | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821234517 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-3 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
Current at conductor cross-section (max.) mm2 | 30A | Blown fuse indication | without blown fuse indication |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse. |
Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages! | Fuse receptacle | pluggable |
Fuse type | Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
