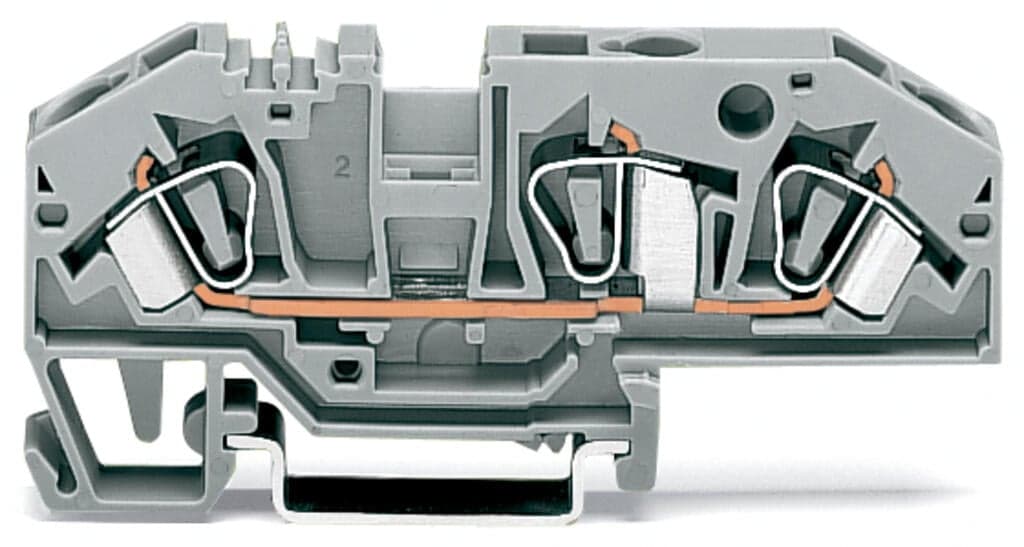

Product Model
282-699
Selling Points
- 1Fast and Vibration-Proof Connections: Industry-proven spring pressure connection technology ensures quick, secure, and maintenance-free connections.
- 2Versatile Conductor Compatibility: Compatible with solid and stranded conductors, including fine-stranded conductors with ferrules.
- 3Durable Design: Constructed with high-quality polyamide (PA66) material, meeting flammability class V0 and fire load of 0.313 MJ.
- 4Easy Installation: Push-in termination simplifies conductor insertion and removal using an operating tool.
- 5Comprehensive Safety Features: Meets international safety standards including DEKRA Certification, Bureau Veritas S.A., and UL International Germany GmbH.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 32.5?mm?/ 1.28?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.313MJ | Weight | 19.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821234548 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.311W |
Rated current I<sub>N</sub> for specified power loss | 41A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
