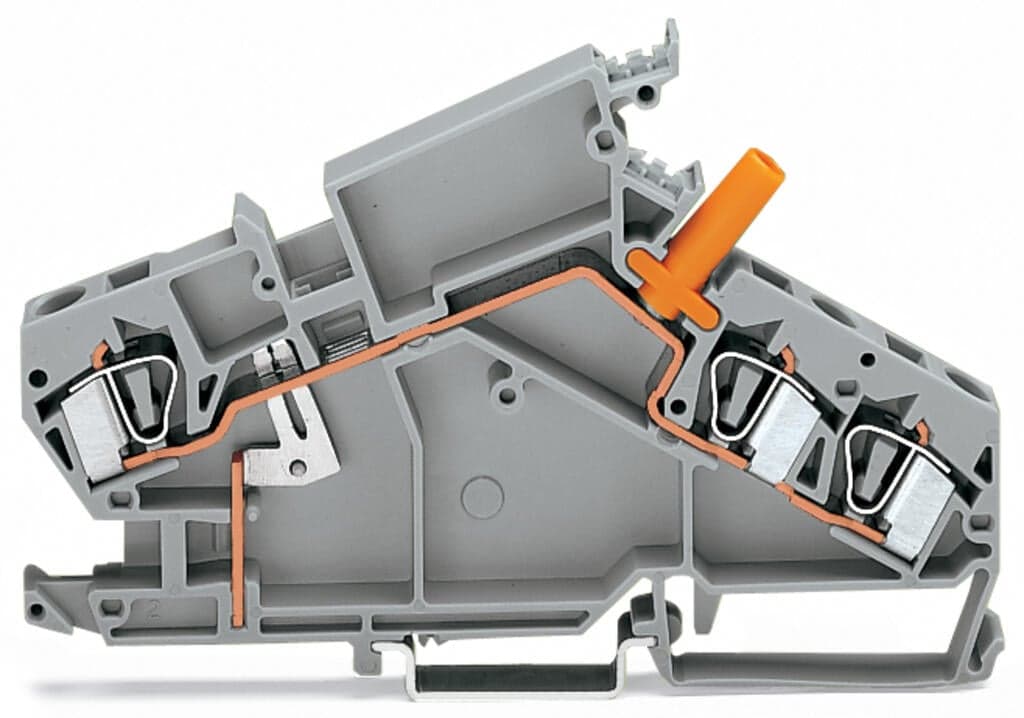

Product Model
282-865
Selling Points
- 1Touch-Proof Test Socket: Ensures safe and reliable testing.
- 2CAGE CLAMP Connections: Easy and secure wire connections.
- 3DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 4High Current Rating: Supports up to 30A of continuous current.
- 5Gray Color: Durable and easy-to-spot in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 122?mm?/ 4.803?inches | Depth from upper-edge of DIN-rail | 74?mm?/ 2.913?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.615MJ | Weight | 38.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918754224 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2db2a6db-22d3-4939-9f48-8495e3cb0944 |
SCIP notification number (Belgium) | b5435141-fb34-41e4-bd66-0d31c02e6b39 | SCIP notification number (Bulgaria) | f8d757d8-6354-4831-b34a-3ad23b2ec452 |
SCIP notification number (Czech Republic) | c814f48d-e74b-4d77-b69e-f75c8ee9220c | SCIP notification number (Denmark) | 6e1b6e33-6f3a-4beb-bd75-6734bdd611a2 |
SCIP notification number (Finland) | 877d468b-ade6-450f-9133-ee81d924048e | SCIP notification number (France) | d9430113-9887-4daa-b0fb-c99834c6f6db |
SCIP notification number (Germany) | 9381cc2d-8f2e-4f6c-8380-af48de49b663 | SCIP notification number (Hungary) | 89742cf1-6cef-41d0-8d67-75aecde795c0 |
SCIP notification number (Italy) | 88ec1340-8768-4eb6-bdfd-9d2d46f4ee2b | SCIP notification number (Netherlands) | 1f4f5b99-a37a-4056-95f0-4e63c50a553f |
SCIP notification number (Poland) | 7a0154d0-b880-4b8d-830c-0fd00a33ac14 | SCIP notification number (Romania) | a59e64da-23b2-49c9-a15e-f85f53e312ad |
SCIP notification number (Sweden) | 3f6c8920-4240-46dc-884a-48e9d44f1412 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 30A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
