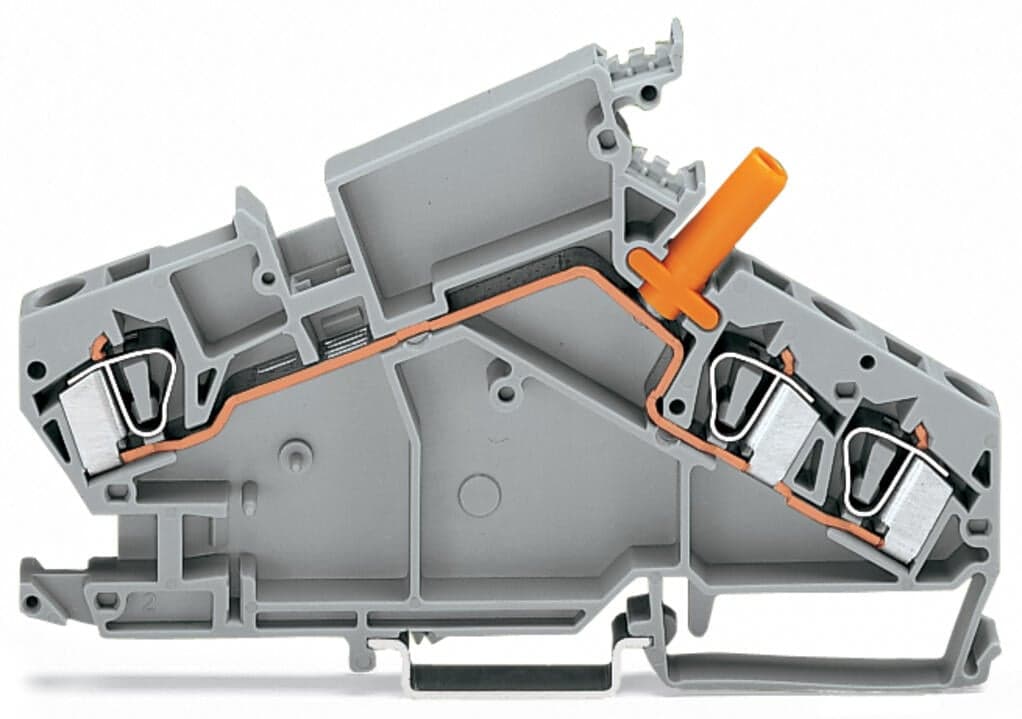

Product Model
282-866
Selling Points
- 1Secure wire connection with CAGE CLAMP spring connections.
- 2Suitable for voltage transformer circuits and DIN-rail mounting.
- 3Touch-proof test socket for safe testing.
- 4Center marking for easy identification.
- 5Rated current up to 30 A for high-performance applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 122?mm?/ 4.803?inches | Depth from upper-edge of DIN-rail | 74?mm?/ 2.913?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.613MJ | Weight | 36.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918454179 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | af56c741-f0e8-4955-b49b-8f8fc82fe364 |
SCIP notification number (Belgium) | aa084f89-0e23-4926-9853-1a1fcb2250fb | SCIP notification number (Bulgaria) | 6c1d0add-de57-4173-b2c4-abfa4bc2e54e |
SCIP notification number (Czech Republic) | 6628bf33-2b10-4712-b499-edb7ca9b9a0e | SCIP notification number (Denmark) | dfa28db7-d708-4942-a1b6-f6494bf7fde8 |
SCIP notification number (Finland) | 899334a2-f2ce-4011-a8c7-02a6f243263d | SCIP notification number (France) | 2827d88e-ddfd-4fd7-bf01-5f2e9bf73c6c |
SCIP notification number (Germany) | d365d9fa-8b13-4253-bc7f-6ef92f851b30 | SCIP notification number (Hungary) | 0a2b2bdf-1c89-49e5-bc0f-ff3024c42688 |
SCIP notification number (Italy) | c6327115-6b04-4046-826e-95e156f00357 | SCIP notification number (Netherlands) | cda58c6a-3fbb-4ebc-9d62-97186f5a5255 |
SCIP notification number (Poland) | c07a4f33-3c81-4785-ac63-9a0d3118fa7d | SCIP notification number (Romania) | 21a5cc61-4eae-4a07-9187-6758ea8633fe |
SCIP notification number (Sweden) | 645c65f5-6a02-458b-8f48-f942ff34581b | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 30A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.702W | Rated current I<sub>N</sub> for specified power loss | 30A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
