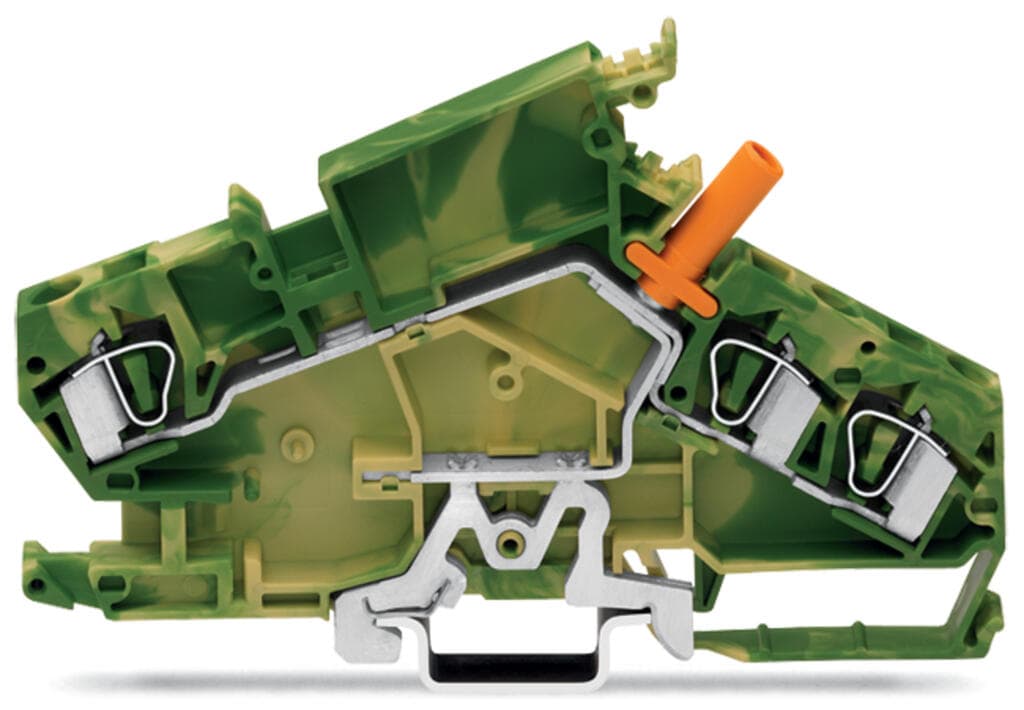

Product Model
282-868
Selling Points
- 1Robust Construction: Built with high-quality polyamide (PA66) for durability and resistance to environmental factors.
- 2Easy Installation: Front-entry wiring design and operating tool actuation make it simple to connect and disconnect conductors.
- 3Touch-Proof Test Socket: Includes a touch-proof test socket for safe and reliable testing of electrical circuits.
- 4Versatile Connectivity: Compatible with solid conductors from 0.2 to 6 mm² and fine-stranded conductors from 24 to 10 AWG.
- 5Compliant with Standards: RoHS compliant and meets V-0 flammability rating, ensuring safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 8?mm?/ 0.315?inches |
Height | 122?mm?/ 4.803?inches | Depth from upper-edge of DIN-rail | 74?mm?/ 2.913?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.624MJ | Weight | 51.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821612773 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
