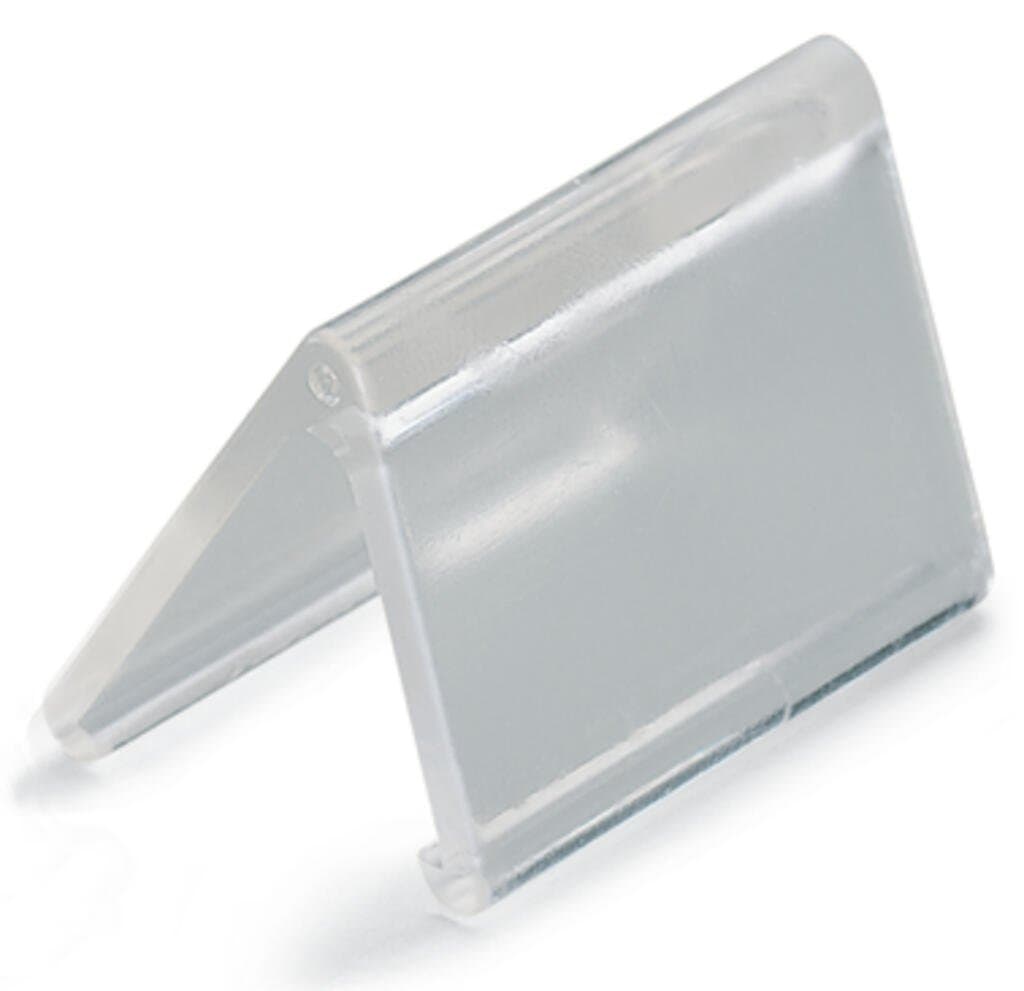

Product Model
282-885
Selling Points
- 1Mechanically locks multiple links for secure connections.
- 2Transparent design for easy visibility and inspection.
- 3Compatible with DIN rail terminal blocks for versatile use.
- 4Ideal for applications requiring high reliability and safety.
- 5Easy to install and maintain, ensuring efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 39.2 mm / 1.543 inches | Note (material data) | Information on material specifications can be found here |
Color | transparent | Material group | IIIa |
Insulation material (main housing) | Polycarbonate (PC) | Flammability class per UL94 | V2 |
Fire load | 0.12MJ | Weight | 2.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454636272 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
