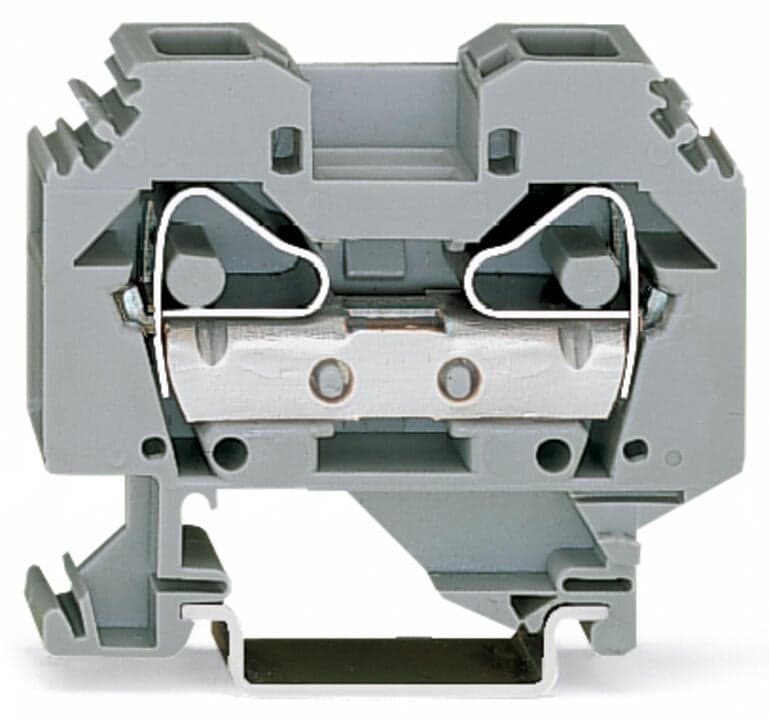

Product Model
283-101
Selling Points
- 1High amperage rating of 76 A for reliable power distribution.
- 2Compatible with DIN-rail 35 x 15 and 35 x 7.5 mounting systems.
- 3Utilizes CAGE CLAMP technology for fast, vibration-proof, and maintenance-free connections.
- 4Suitable for solid aluminum conductors up to 4 mm²/12 AWG with WAGO "Alu-Plus" Contact Paste.
- 5Operating temperature range of -60 to 105°F (-51 to 40°C) for versatile application.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 58?mm?/ 2.283?inches | Depth from upper-edge of DIN-rail | 45.5?mm?/ 1.791?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.374MJ | Weight | 27.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821413110 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 2.426W |
Rated current I<sub>N</sub> for specified power loss | 76A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
