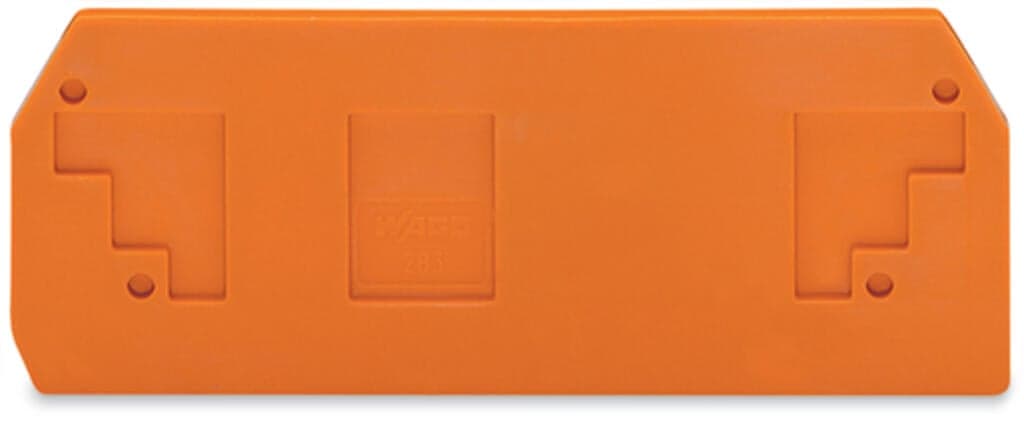

Product Model
283-328
Selling Points
- 1Industrial-grade durability: Built to withstand harsh industrial environments.
- 2Easy installation: Designed for seamless integration with rail-mounted terminal blocks.
- 3Compact design: 2.5mm thickness ensures minimal space usage.
- 4RoHS compliant: Meets environmental regulations with no SVHC or phthalates.
- 5Versatile applications: Suitable for a wide range of industrial settings and projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 94.4?mm?/ 3.717?inches |
Depth | 36.5 mm / 1.437 inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.182MJ | Weight | 6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291729 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
