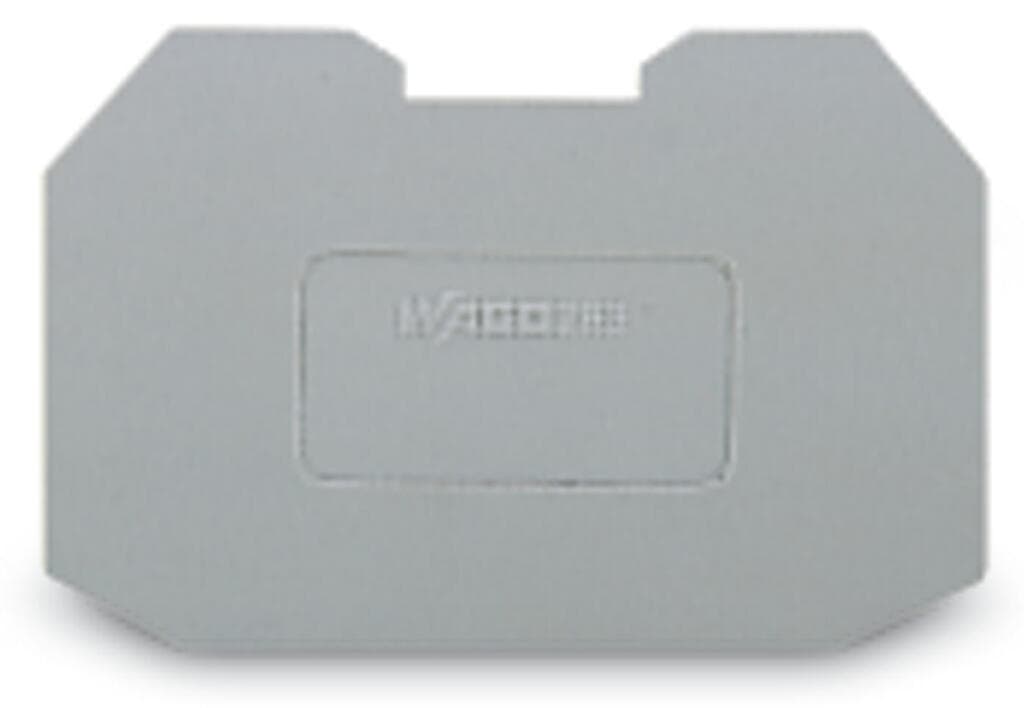

Product Model
283-333
Selling Points
- 1Compact Design: 58 mm depth and 38.3 mm height for efficient use in DIN rail terminal blocks.
- 2Durable Material: 1 mm thick, gray color, ensuring long-lasting protection.
- 3Easy Installation: Designed to fit seamlessly with WAGO terminal blocks.
- 4Cost-Effective: Available in bulk quantities (25 pieces) at an affordable price.
- 5High-Quality Brand: Manufactured by WAGO, a renowned brand in electrical connectors and interconnects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 58?mm?/ 2.283?inches |
Depth | 38.3?mm?/ 1.508?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.072MJ | Weight | 2.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332286503 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
