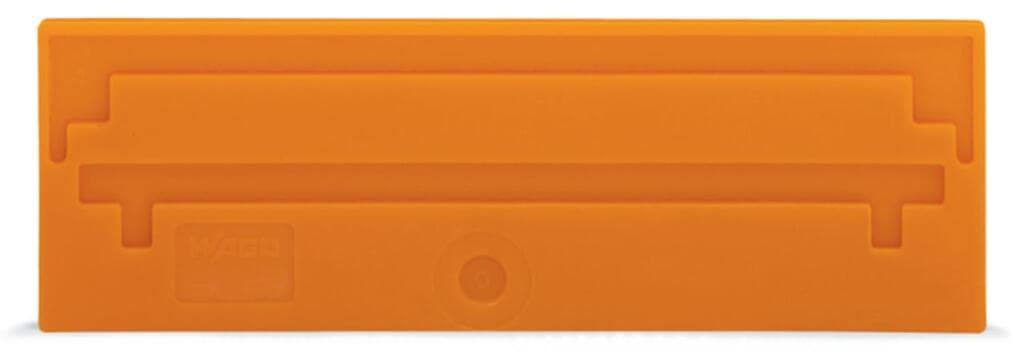

Product Model
283-353
Selling Points
- 1Secure wire connections with CAGE CLAMP technology.
- 2Corrosion-resistant stainless steel clamping mechanism.
- 3Automatic wire connection without crimps or ferrules.
- 4Suitable for wire sizes from 0.08 mm² to 35 mm².
- 5Proportional clamping force adjusts to conductor cross-section.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 103.4?mm?/ 4.071?inches |
Depth | 36.5?mm?/ 1.437?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.155MJ | Weight | 5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291798 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
