Product Model
283-354
Selling Points

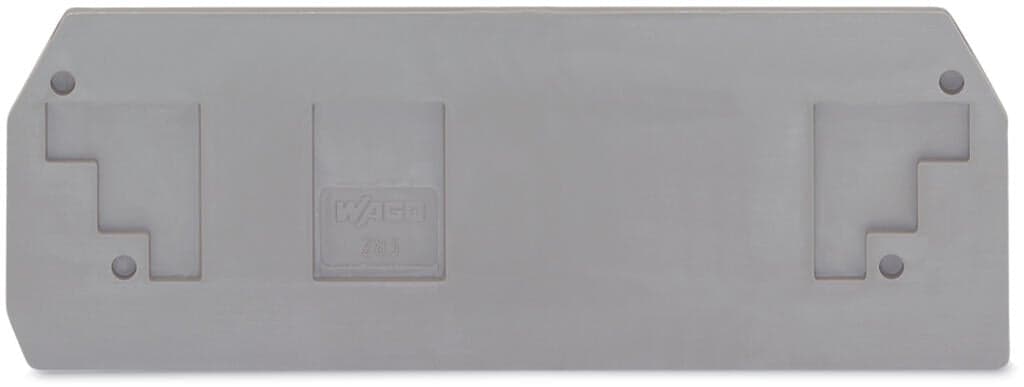

- 12.5 mm thick, light gray end and intermediate plate.
- 2Meets RoHS compliance and UL94 V0 fire load requirements.
- 3Compatible with WAGO series 283 DIN rail terminal blocks.
- 4Height: 104.3 mm, Depth: 37.5 mm, Width: 2.5 mm.
- 5Made from polyamide (PA66) for high performance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 104.3?mm?/ 4.106?inches |
Depth | 37.5?mm?/ 1.476?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.204MJ | Weight | 6.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332291804 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
