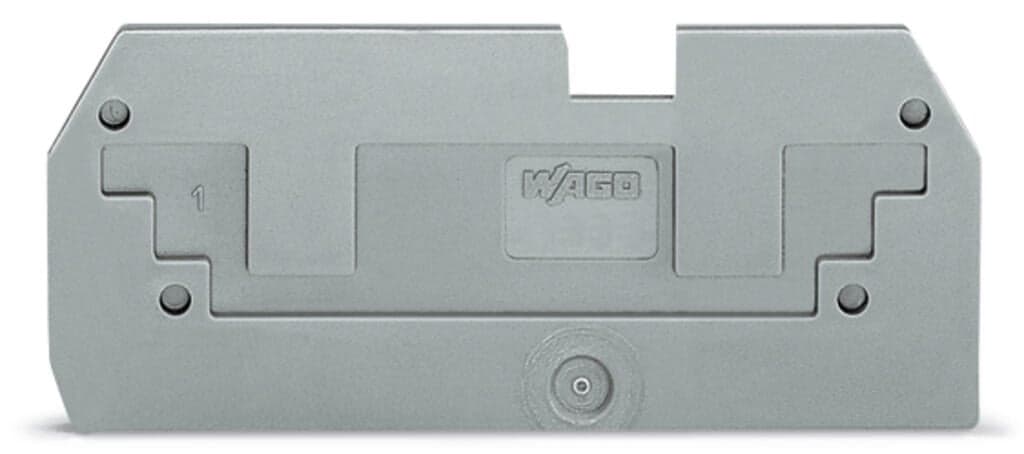

Product Model
283-357
Selling Points
- 1High-quality electrical connections for precise and reliable performance.
- 2Easy installation with minimal effort required.
- 3Durable design withstands harsh industrial environments.
- 4Ideal for a wide range of industrial applications.
- 5Meets or exceeds industry standards for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 94.4?mm?/ 3.717?inches |
Depth | 28.4?mm?/ 1.118?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.074MJ | Weight | 2.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332337212 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
