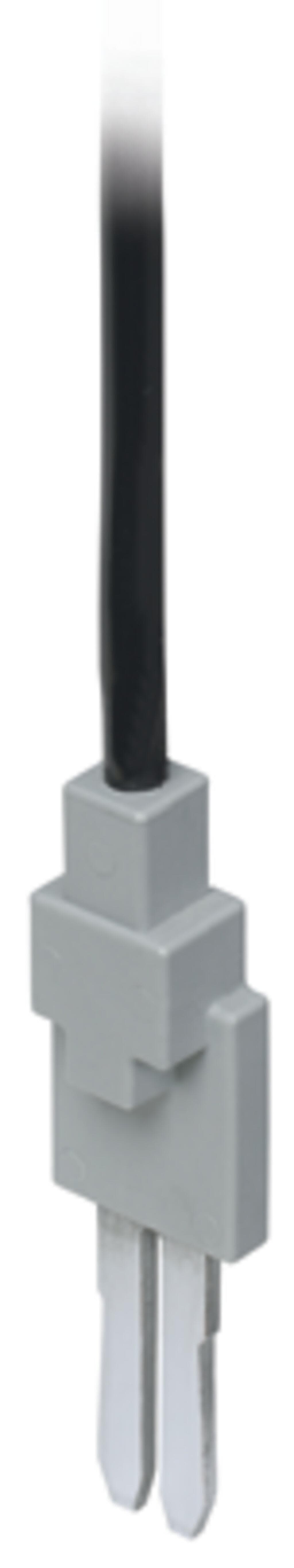

Product Model
283-407
Selling Points
- 1High Voltage Rating: 800V for reliable power distribution.
- 2High Current Capacity: 24A for efficient power handling.
- 3Durable Material: Made from Polyamide 6.6 for long-lasting performance.
- 4Gray Color: Easy identification in industrial settings.
- 5RoHS Compliant: Meets environmental safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Always push voltage tap down into the terminal block until fully inserted! | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 15.474MJ | Weight | 22.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918853408 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 24A |
Specifications may be subject to change without notice
