Product Model

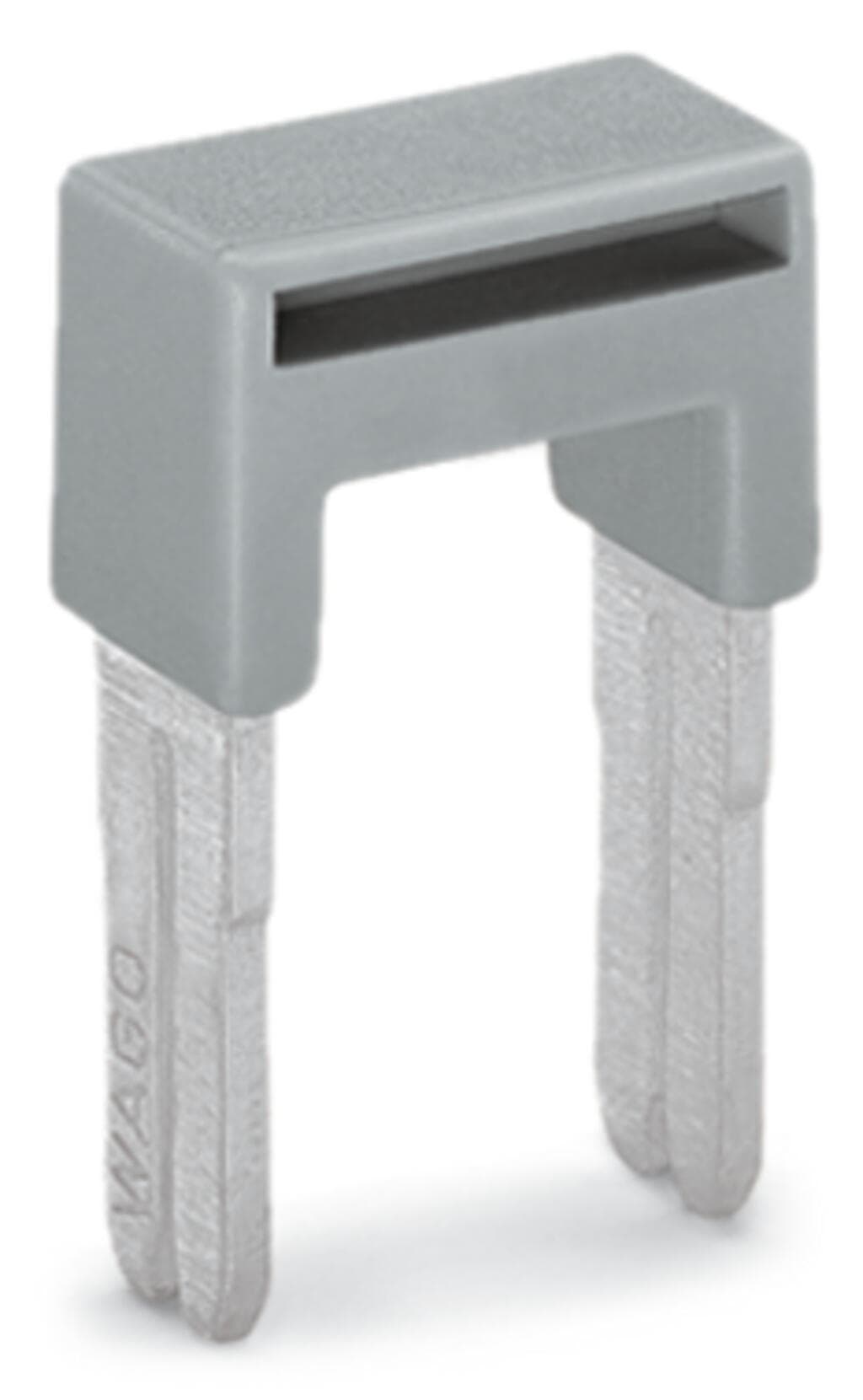

283-409
Selling Points
- 1High Amperage Rating: 76 Amperage Rating for reliable electrical connections.
- 2RoHS Compliant: Meets environmental standards with no exemptions.
- 3Insulated Design: Ensures safe and secure electrical connections.
- 4Gray Color: Easy identification in industrial settings.
- 5Versatile Use: Compatible with WAGO 283 series rail-mount terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22.8 mm / 0.898 inches | Height | 13.6 mm / 0.535 inches |
Depth | 31.4 mm / 1.236 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.108MJ | Weight | 9.9g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918255370 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 76A | Rated current (Ex e II) | 63A |
Specifications may be subject to change without notice
