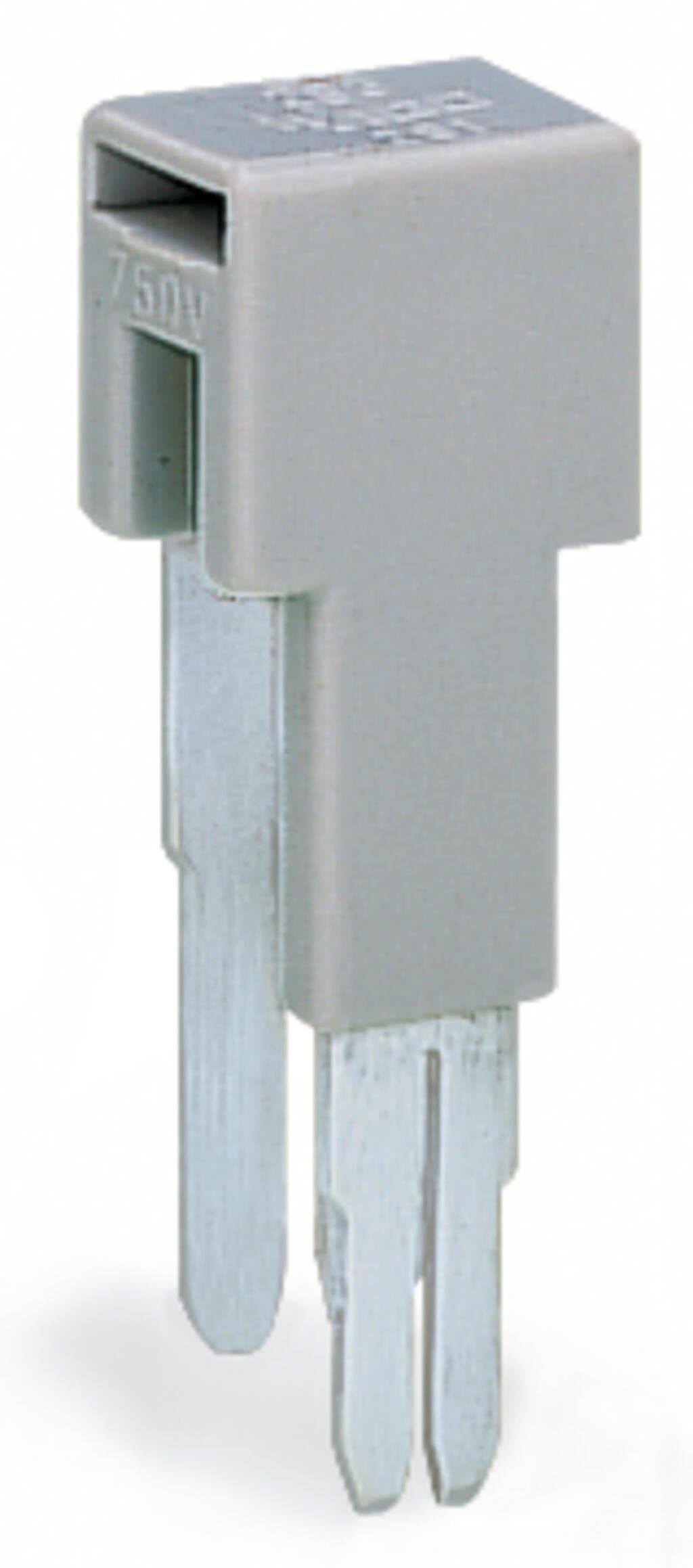

Product Model
283-414
Selling Points
- 1Insulated for safe electrical connections.
- 2Connects conductors from 16mm² to 4mm².
- 3Rated for a nominal current of 32A.
- 4Gray in color for easy identification.
- 5Designed for rail and chassis mount applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 8.4 mm / 0.331 inches | Height | 13.4 mm / 0.528 inches |
Depth | 38.7 mm / 1.524 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.035MJ |
Weight | 4.9g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918398589 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 32A |
Specifications may be subject to change without notice
