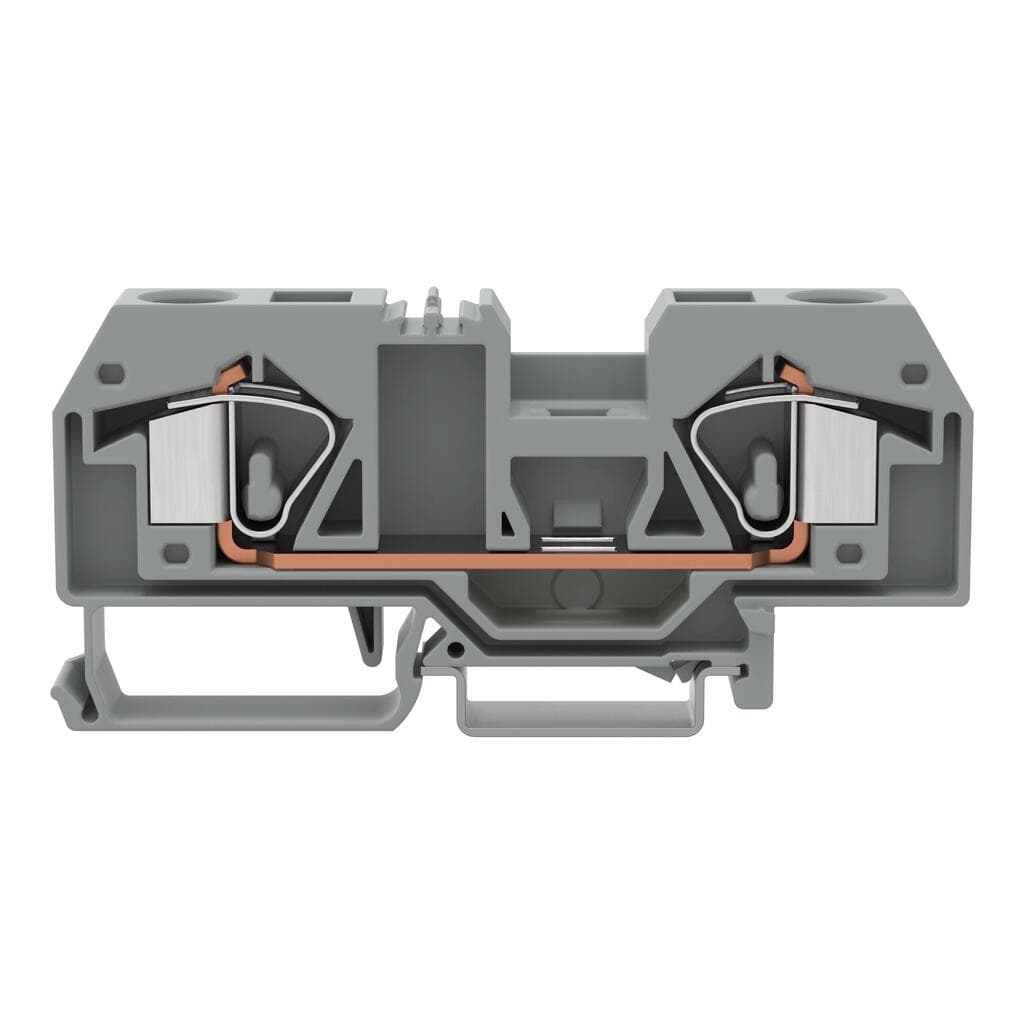

Product Model
283-904
Selling Points
- 1Efficient Connectivity: Designed for easy installation and reliable connections.
- 2DIN Rail Mounting: Conveniently mounts on DIN rails for space-saving solutions.
- 3Screwless Wiring: Simplifies wiring with clamp connections.
- 4High Current Rating: Handles up to 76A, suitable for demanding applications.
- 5Blue Color Coding: Easy identification of terminal blocks in complex systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 94.5?mm?/ 3.72?inches | Depth from upper-edge of DIN-rail | 37.5?mm?/ 1.476?inches |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.536MJ |
Weight | 35.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918297875 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 76A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 2.426W | Rated current I<sub>N</sub> for specified power loss | 76A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
