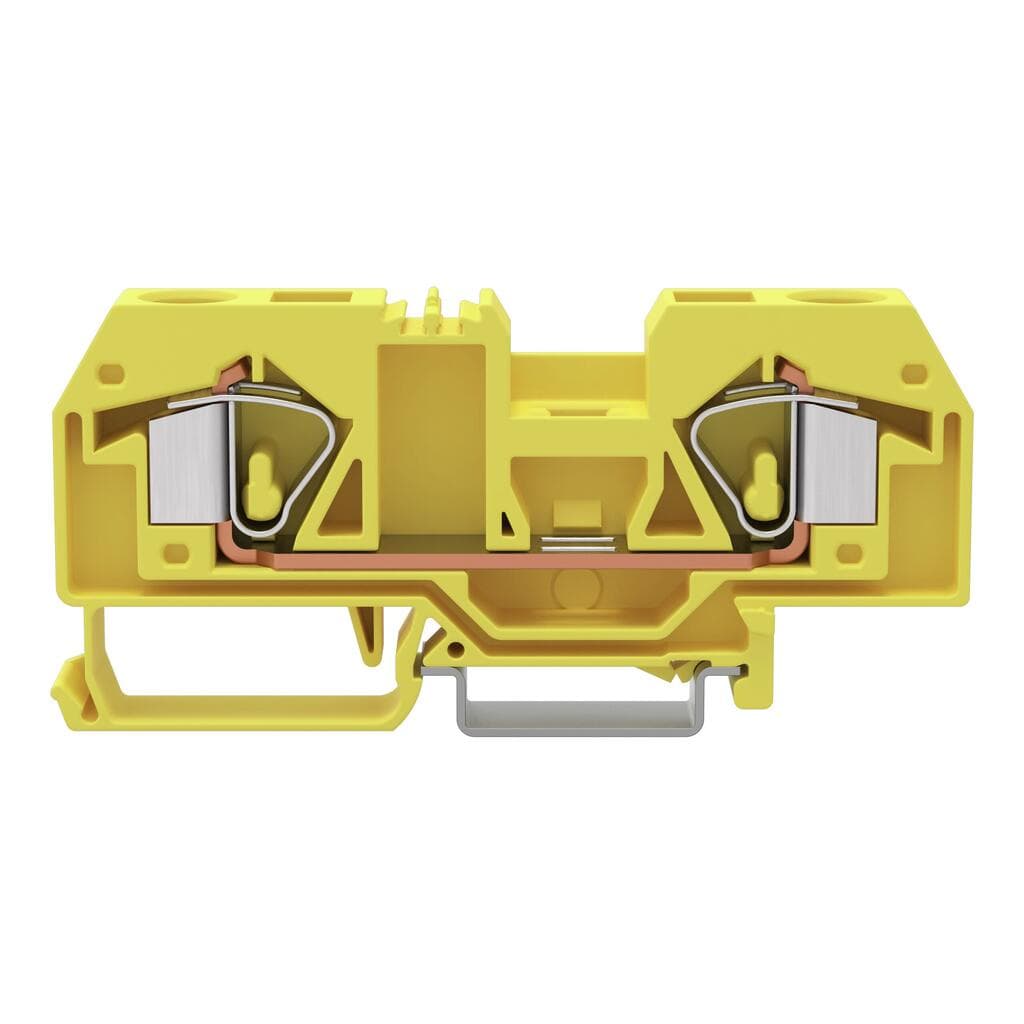

Product Model
283-906
Selling Points
- 1Built with robust CAGE CLAMP technology for secure connections.
- 2Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5.
- 3Center marking ensures precise placement and easy wiring.
- 4Handles up to 16 mm², suitable for demanding applications.
- 5Yellow color indicates high-quality materials and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 94.5?mm?/ 3.72?inches | Depth from upper-edge of DIN-rail | 37.5?mm?/ 1.476?inches |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.534MJ |
Weight | 35.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966232042 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 76A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 2.426W |
Rated current I<sub>N</sub> for specified power loss | 76A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
