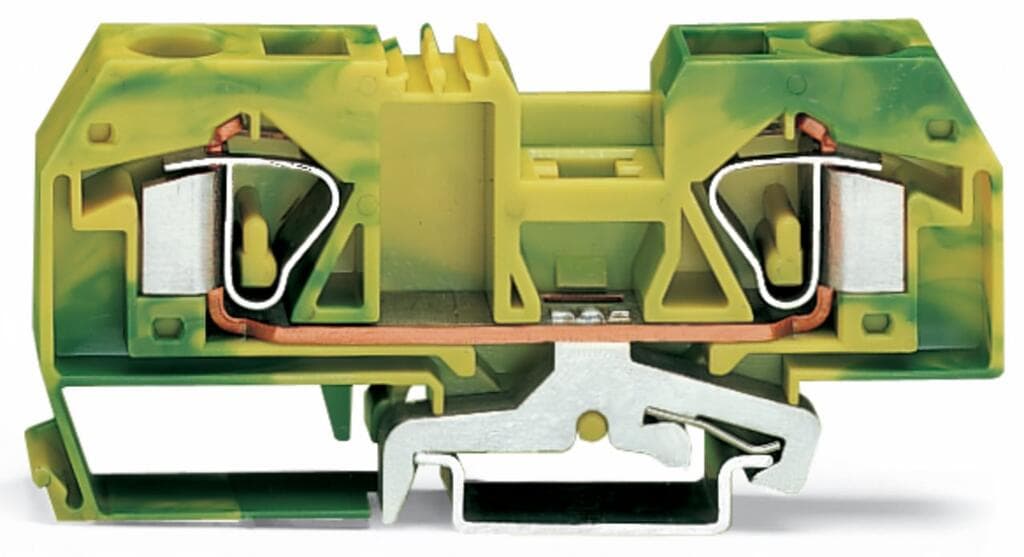

Product Model
283-907
Selling Points
- 1High-Performance DIN-Rail Mount: Designed for easy installation on DIN-rail systems.
- 2CAGE CLAMP Technology: Fast, vibration-proof, and maintenance-free connection.
- 3Wide Wire Compatibility: Supports solid and stranded conductors, including fine-stranded conductors with ferrules.
- 4High Current Rating: Handles up to 76A, ensuring reliable power distribution.
- 5Comprehensive Certifications: Meets various international standards including UL, CSA, and DNV GL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 94.5?mm?/ 3.72?inches | Depth from upper-edge of DIN-rail | 37.5?mm?/ 1.476?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.502MJ | Weight | 46.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454084561 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 6f08e2d9-8547-4420-908d-3d6d4204f0bc | SCIP notification number (Belgium) | ecf4ee45-3cf9-4929-9a12-f2b7f1145cf8 |
SCIP notification number (Bulgaria) | 8619e204-9cdb-4a67-bf86-51e6b2b4296e | SCIP notification number (Czech Republic) | a2853f5b-e381-4352-af6d-b3e98eccd12b |
SCIP notification number (Denmark) | f59a6449-a4e4-4fd3-8921-eb62f8c59f01 | SCIP notification number (Finland) | 0bb0b680-e122-4311-a23f-8d7016696aa9 |
SCIP notification number (France) | dd28f581-62cf-4854-9290-5e0573e859ff | SCIP notification number (Germany) | 15ae49d0-459a-4686-9676-861c3c053dfe |
SCIP notification number (Hungary) | 611256d6-0a54-4186-bc9c-bc9630c4b2e2 | SCIP notification number (Italy) | e959db15-d655-4012-af2f-698ba24c1422 |
SCIP notification number (Netherlands) | aa23ebf2-fc02-46bd-9956-b6053d63c477 | SCIP notification number (Poland) | 7c4929dd-de7c-4bc6-81e2-a56bd23c8011 |
SCIP notification number (Romania) | b064b447-92ab-494e-9b4b-2e4ff609e80c | SCIP notification number (Sweden) | d6b1c31a-45f5-4161-afc8-7511b396a968 |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 16 mm2 | Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
