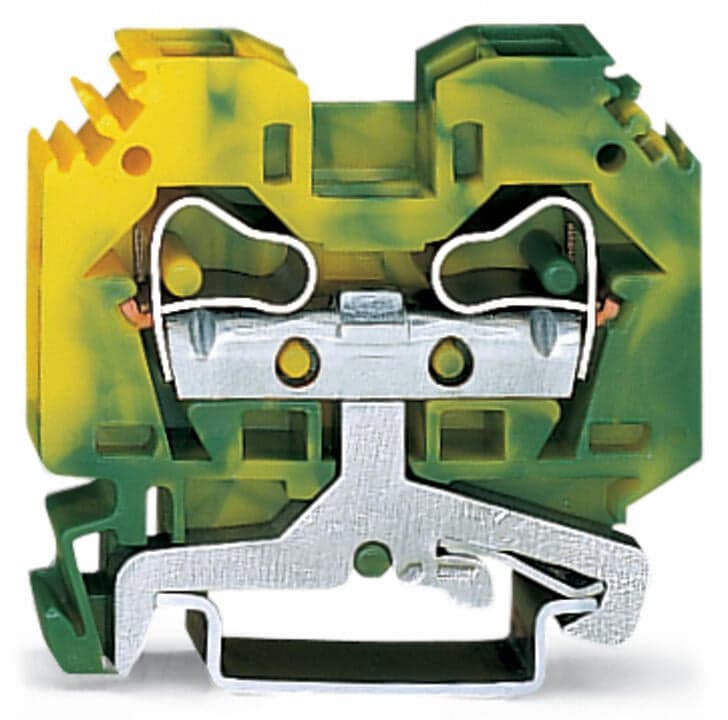

Product Model
284-107
Selling Points
- 1Fast and vibration-proof connection technology.
- 2Ideal for DIN-rail 35 x 15 and 35 x 7.5 applications.
- 3Maintenance-free design ensures long-term reliability.
- 4Compatible with solid and stranded conductors, including fine-stranded conductors with ferrules.
- 5Secure female plugs via locking levers and strain relief plates.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
Height | 52?mm?/ 2.047?inches | Depth from upper-edge of DIN-rail | 41.5?mm?/ 1.634?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.266MJ | Weight | 27.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454084585 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 3af7ae0b-2fd7-4b30-9177-e262876b0fa0 |
SCIP notification number (Belgium) | fe08a277-ba05-4103-8df6-a3b299e1be85 | SCIP notification number (Bulgaria) | 29a54f64-a7f8-4851-b221-0489b524e270 |
SCIP notification number (Czech Republic) | f3c68001-332e-4c11-b8cf-d21b6f9deb04 | SCIP notification number (Denmark) | bef22266-73a4-4803-acfb-a04a13525ffa |
SCIP notification number (Finland) | c7853c7e-0cec-41fb-8952-b6243bd58ac3 | SCIP notification number (France) | 4a294679-b41f-4217-9ca3-4b47f92b0c43 |
SCIP notification number (Germany) | 78d7e4b5-ae0f-4e6e-8f26-1c8becd546bd | SCIP notification number (Hungary) | 66a3fd1d-29d2-4b4e-88d3-2e37f210e7b0 |
SCIP notification number (Italy) | 98052f06-05e9-4831-a175-29d20762fc13 | SCIP notification number (Netherlands) | 167cdf8f-9484-4e87-a57d-836cc67b7a6d |
SCIP notification number (Poland) | 9418119d-5e50-4c2c-a7d2-e39941cf8509 | SCIP notification number (Romania) | 1ae3843a-59e5-44fe-ac41-7451cb8ea035 |
SCIP notification number (Sweden) | a6d5b01a-e7b1-4e95-b87d-10ce4e97dc7a | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
