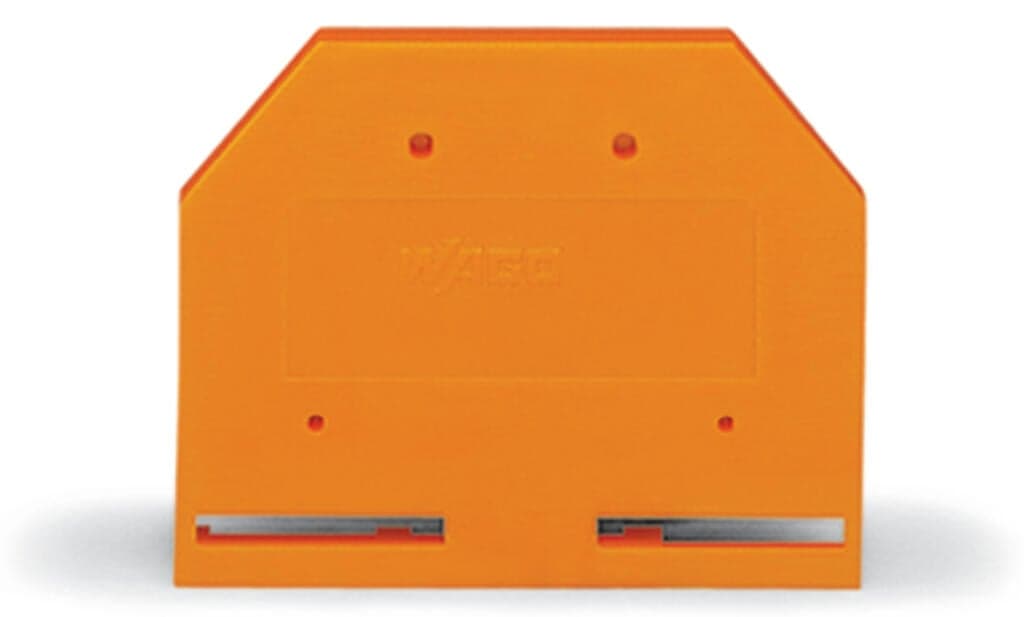

Product Model
284-302
Selling Points
- 12.5 mm thick, durable construction
- 2Suitable for DIN rail terminal blocks
- 3High fire load resistance (0.092 MJ)
- 4RoHS compliant for environmental safety
- 5Easy to install with precise dimensions (2.047 in H x 0.098 in W x 1.575 in D)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 52?mm?/ 2.047?inches |
Depth | 40?mm?/ 1.575?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.092MJ | Weight | 3.1g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332286732 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
