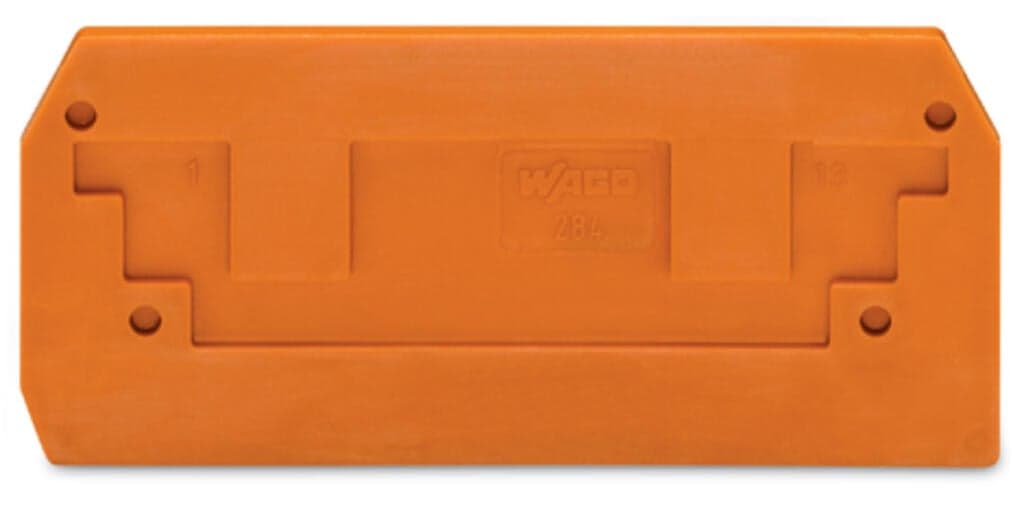

Product Model
284-328
Selling Points
- 1Durable 2.5 mm thick construction for long-lasting performance.
- 2Orange color for easy identification in industrial settings.
- 3Designed for DIN rail terminal blocks, ensuring seamless integration.
- 4Meets high standards with a fire load of 0.131 MJ and V0 flammability class.
- 5Available in multiples of 25 items for efficient inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 77.5?mm?/ 3.051?inches |
Depth | 35?mm?/ 1.378?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.131MJ | Weight | 4.4g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332291637 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
