Product Model
284-358
Selling Points

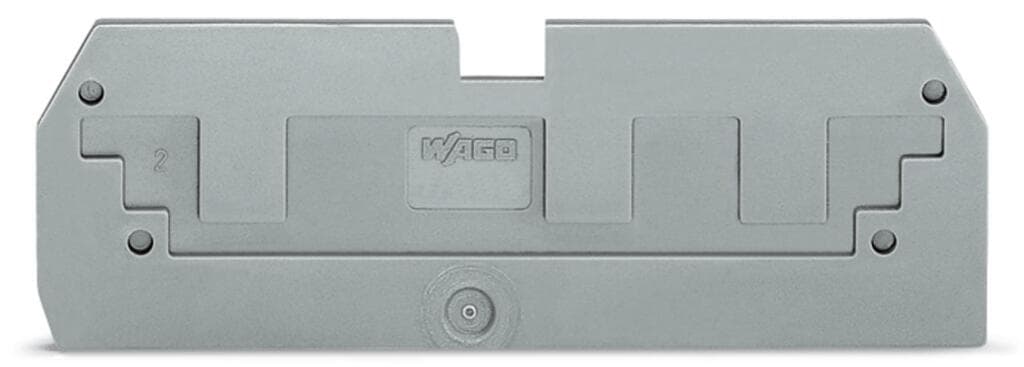

- 1Gray Color: The WAGO 284-358 step-down cover plate is available in a durable gray finish.
- 21 mm Thickness: Made from 1 mm thick material for added strength and durability.
- 33-Conductor Compatibility: Specifically designed for use with 3-conductor 284-681 terminal blocks.
- 4DIN Rail Application: Perfect for DIN rail mounting in industrial and commercial settings.
- 5Gray (4017332337199): Features a unique UPC code for easy identification and inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 97.4?mm?/ 3.835?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.064MJ |
Weight | 2.1g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332337199 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
