Product Model
284-367
Selling Points

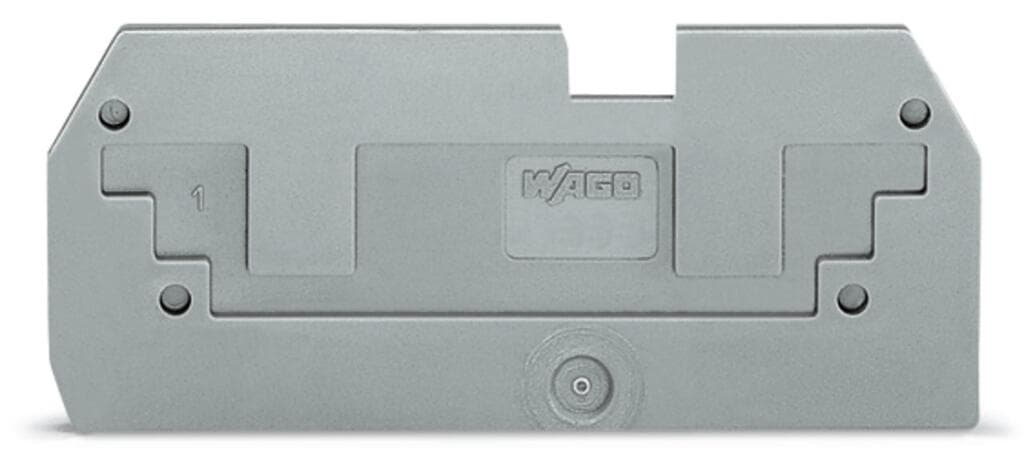

- 1The 284-367 step-down cover plate ensures secure and efficient connections for 2-conductor terminal blocks.
- 2Made from 1 mm thick material, providing robustness and reliability in various electrical applications.
- 3Snap-on design makes installation straightforward, ensuring minimal downtime and hassle-free setup.
- 4Available in orange, making it easy to identify and organize electrical components.
- 5Designed specifically for WAGO's 284-901 terminal blocks, ensuring seamless integration with existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 77.5?mm?/ 3.051?inches |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.063MJ |
Weight | 2.1g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332337182 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
