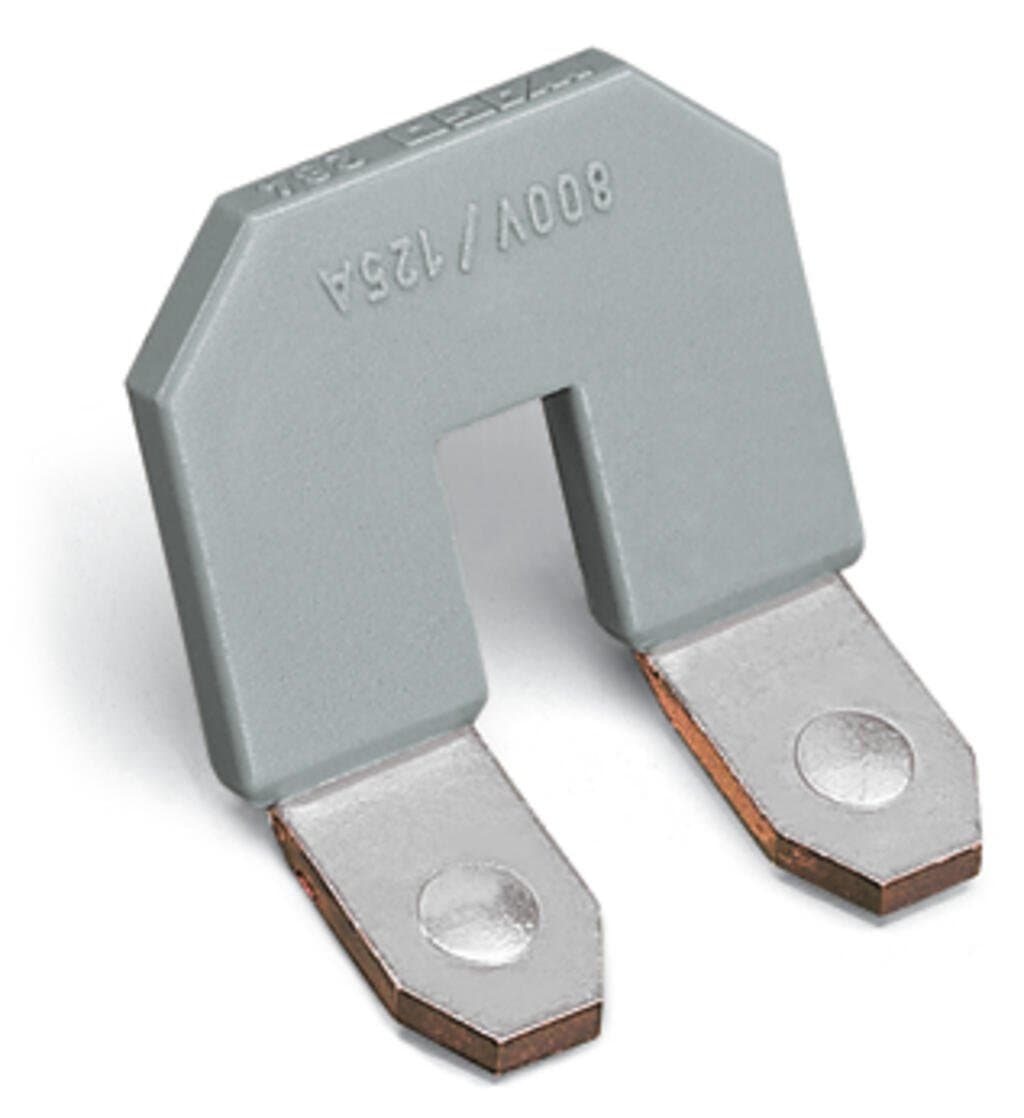

Product Model
284-412
Selling Points
- 1Reliable Connectivity: Seamlessly connects terminal blocks with its comb-shaped design.
- 2High Current Rating: Supports up to 125A nominal current, ensuring robust electrical performance.
- 3Durable Construction: Built with durable materials to maintain signal integrity and protect sensitive systems.
- 4Easy Installation: User-friendly design facilitates quick and efficient installation in various environments.
- 5RoHS Compliant: Meets environmental standards with RoHS compliance, ensuring eco-friendly operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 29.1 mm / 1.146 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.05MJ | Weight | 15.1g |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | IN |
GTIN | 4045454074524 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 125A |
Specifications may be subject to change without notice
