Product Model

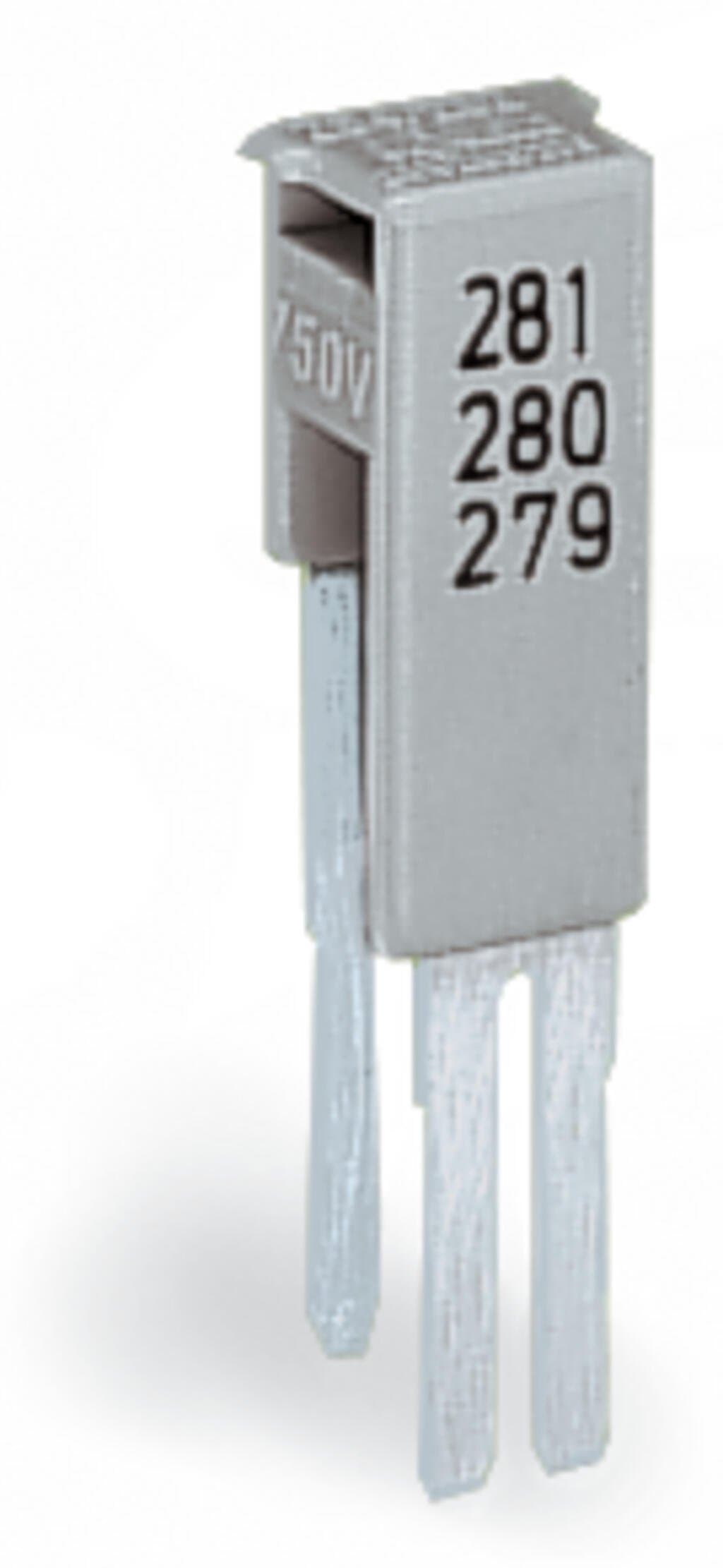

284-414
Selling Points
- 1The 284-414 step-down jumper is fully insulated to prevent electrical shocks and ensure safe connections.
- 2Designed to step down voltage efficiently, making it ideal for various electrical applications.
- 3Compact size allows for easy integration into tight spaces without compromising performance.
- 4Built with high-quality materials for consistent and reliable electrical connections.
- 5Suitable for use in multiple series (281/280/279) of WAGO terminal blocks, enhancing versatility in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 6.7 mm / 0.264 inches | Height | 9.2 mm / 0.362 inches |
Depth | 30.6 mm / 1.205 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.017MJ |
Weight | 2.1g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918255615 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 15A |
Specifications may be subject to change without notice
