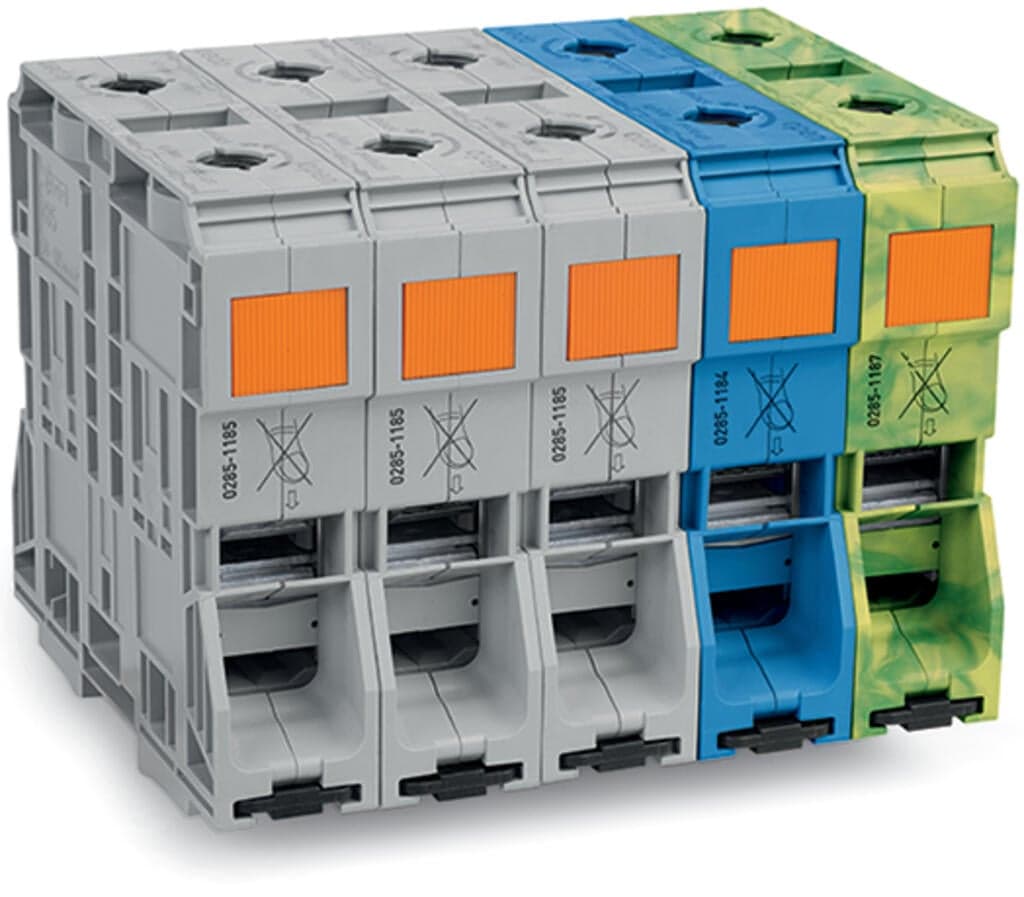

Product Model
285-1169
Selling Points
- 1Supports conductors up to 185mm² or #1/0AWG to #350kcmil.
- 2Constructed with polyamide 66 (PA 66) insulating material and gray, blue, green-yellow colors.
- 3Meets Ex e II standards for safe operation in hazardous environments.
- 4Snap-in mounting feet and side-entry wiring simplify setup on DIN-35 rail.
- 5Features 10 wires with 5 clamps each, accommodating various conductor types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Ground conductors up to max. 120 mm2 can be connected in compliance with IEC 60947-7-2. | Clamping units | 10 |
Total number of potentials | 5 | Number of levels | 1 |
Width | 160?mm?/ 6.299?inches | Height | 130?mm?/ 5.118?inches |
Depth from upper-edge of DIN-rail | 116?mm?/ 4.567?inches | Design | horizontal type |
Mounting type | DIN-rail 35 x 15; 2.3 mm thick; copper | Mounting (note) | only suitable for DIN 35 x 15 copper rail; 2.3 mm thick |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray/blue/green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 24.812MJ | Halogen-free | Yes |
Weight | 2764.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143074322 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
Rated current | 353A | Rated voltage (III/3) 2 | 1500V |
Rated surge voltage (III/3) 2 | 12kV | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 310A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 310A |
Rated voltage CSA (Use Group B) | 1000V | Rated current CSA (Use Group B) | 310A |
Rated voltage CSA (Use Group C) | 1000V | Rated current CSA (Use Group D) | 310A |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 185 mm2 / 350 kcmil |
Solid conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Fine-stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Fine-stranded conductor; with insulated ferrule | 50 … 150?mm2?/ 1/0?AWG … 250?kcmil |
Fine-stranded conductor; with uninsulated ferrule | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Strip length | 45 … 47?mm?/ 1.77 … 1.85?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
