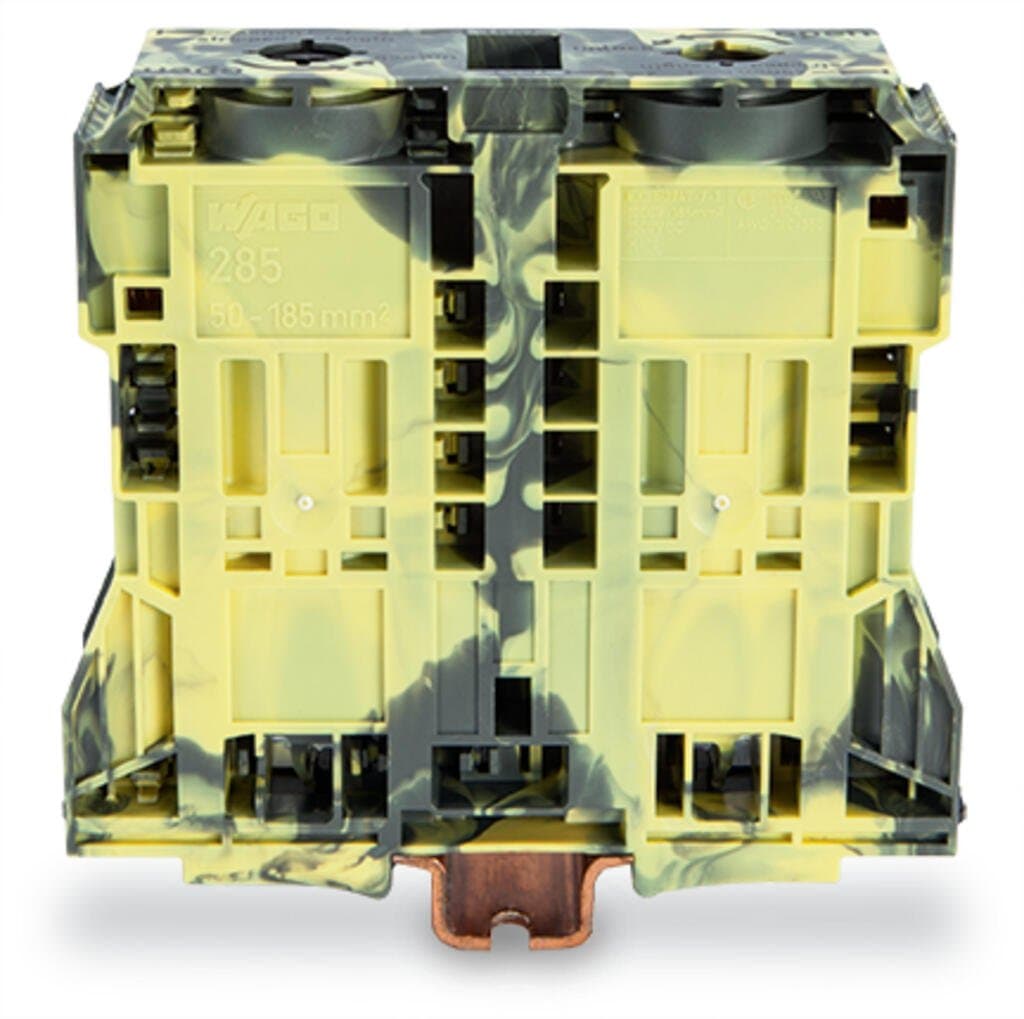

Product Model
285-1181
Selling Points
- 1Supports up to 353A current.
- 2Made with polyamide (PA66) insulation.
- 3Mounts on DIN 35 x 15 rail with side-entry wiring.
- 4Accommodates solid conductors from 50mm² to 185mm².
- 532mm wide, dark gray-yellow color.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 32?mm?/ 1.26?inches | Height | 130?mm?/ 5.118?inches |
Depth from upper-edge of DIN-rail | 116?mm?/ 4.567?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | dark gray/yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 5.812MJ |
Weight | 528.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143418508 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 12kV | Rated current | 353A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated voltage (III/3) 2 | 1500V |
Rated surge voltage (III/3) 2 | 12kV | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 310A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 310A |
Rated voltage CSA (Use Group B) | 1000V | Rated current CSA (Use Group B) | 310A |
Rated voltage CSA (Use Group C) | 1000V | Rated current CSA (Use Group D) | 310A |
Power loss, per pole (potential) | 11.215W | Rated current I<sub>N</sub> for specified power loss | 353A |
Resistance value for specified, current-dependent power loss | 9Ω | Voltage type 1 | AC/DC |
Voltage type 2 | DC | Connection technology | POWER CAGE CLAMP |
Actuation type | T-wrench; 8 mm | Connectable conductor materials | Copper |
Nominal cross-section | 185 mm2 / 350 kcmil | Solid conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Fine-stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Fine-stranded conductor; with insulated ferrule | 50 … 150?mm2?/ 1/0?AWG … 300?kcmil | Fine-stranded conductor; with uninsulated ferrule | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Strip length | 45 … 47?mm?/ 1.77 … 1.85?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
