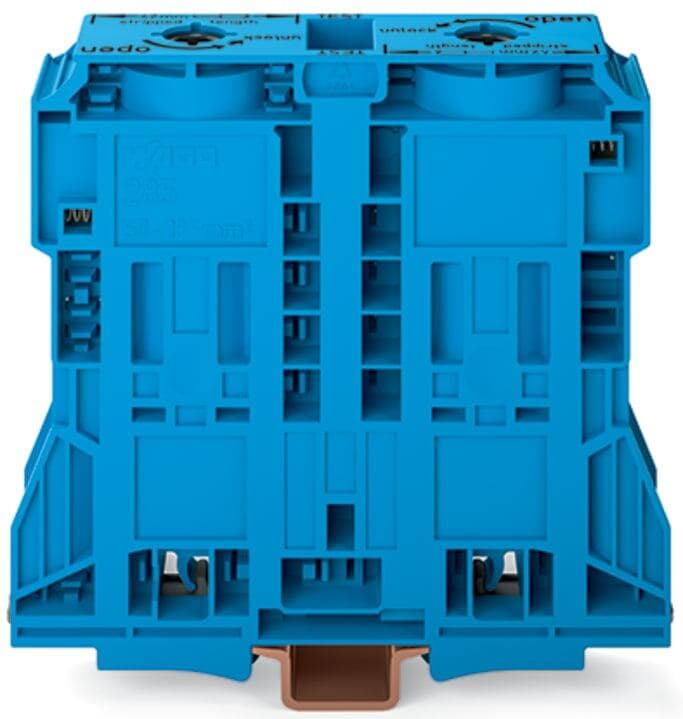

Product Model
285-1184
Selling Points
- 1DIN Rail Mounting: Designed for DIN 35 x 15 rail, ensuring easy installation.
- 2High Current Capacity: Rated for 353 A, suitable for demanding electrical systems.
- 3Versatile Connectivity: Features 2 terminal connectors with power cage clamp and copper conductors.
- 4Easy Wiring: Single level, side-entry wiring simplifies electrical connections.
- 5Durable Construction: Made from blue polyamide PA66 with flammability class UL94 V0 for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 32?mm?/ 1.26?inches | Height | 130?mm?/ 5.118?inches |
Depth from upper-edge of DIN-rail | 116?mm?/ 4.567?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 5.812MJ |
Weight | 530.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143067058 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
Rated current | 353A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated voltage (III/3) 2 | 1500V | Rated surge voltage (III/3) 2 | 12kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 310A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 310A | Rated voltage CSA (Use Group B) | 1000V |
Rated current CSA (Use Group B) | 310A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group D) | 310A | Power loss, per pole (potential) | 11.215W |
Rated current I<sub>N</sub> for specified power loss | 353A | Resistance value for specified, current-dependent power loss | 9Ω |
Voltage type 1 | AC/DC | Voltage type 2 | DC |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 185 mm2 / 350 kcmil |
Solid conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Fine-stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Fine-stranded conductor; with insulated ferrule | 50 … 150?mm2?/ 1/0?AWG … 300?kcmil |
Fine-stranded conductor; with uninsulated ferrule | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Strip length | 45 … 47?mm?/ 1.77 … 1.85?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
