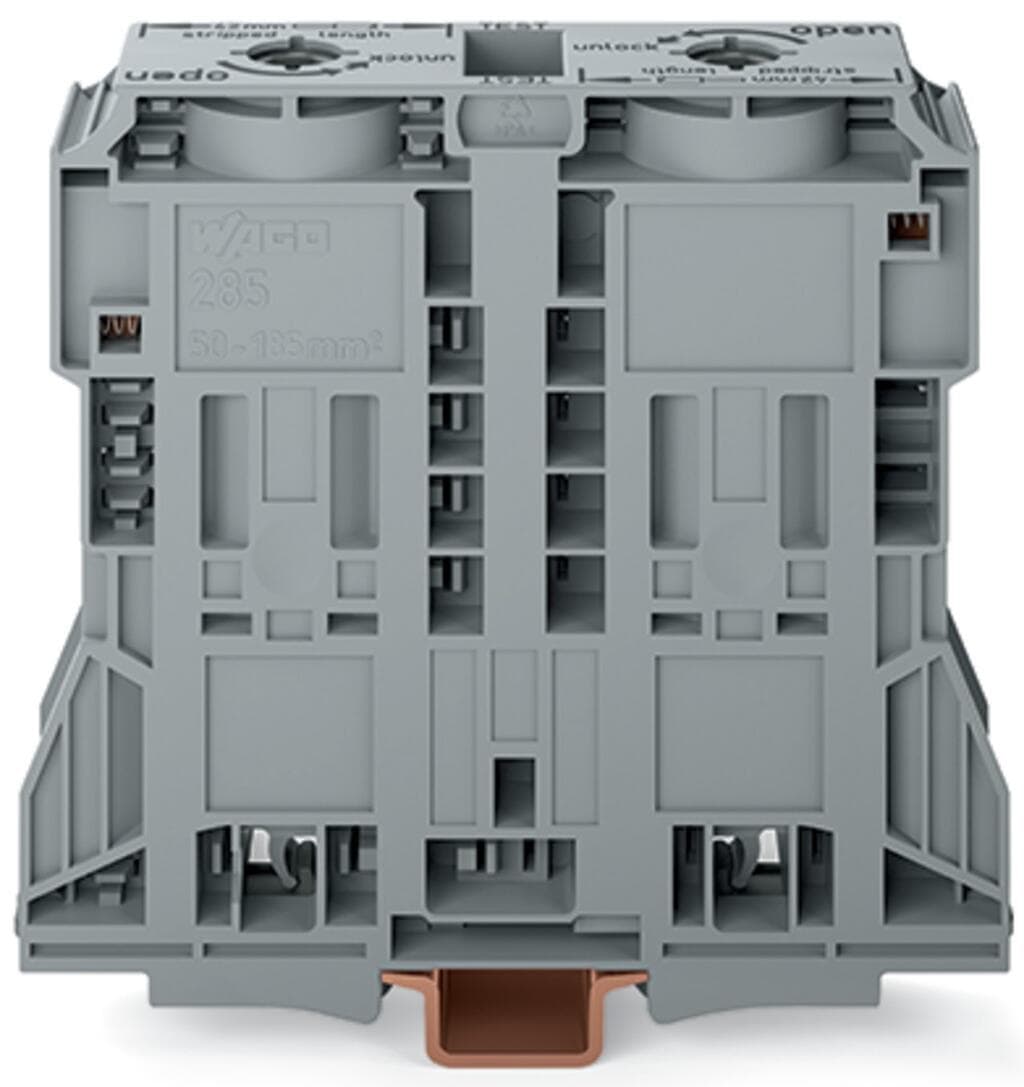

Product Model
285-1185
Selling Points
- 1High amperage rating of 353A for heavy-duty applications.
- 2Designed for DIN 35 x 15 rail mounting, ensuring easy installation.
- 3Rated voltage of 1000V for reliable electrical connections.
- 4Constructed with polyamide (PA66) for durability and insulation.
- 5Side-entry wiring and spring-loaded connections for efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 32?mm?/ 1.26?inches | Height | 130?mm?/ 5.118?inches |
Depth from upper-edge of DIN-rail | 116?mm?/ 4.567?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 5.812MJ |
Weight | 534.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143067065 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
Rated current | 353A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated voltage (III/3) 2 | 1500V | Rated surge voltage (III/3) 2 | 12kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 310A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 310A | Rated voltage CSA (Use Group B) | 1000V |
Rated current CSA (Use Group B) | 310A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group D) | 310A | Power loss, per pole (potential) | 11.215W |
Rated current I<sub>N</sub> for specified power loss | 353A | Resistance value for specified, current-dependent power loss | 9Ω |
Voltage type 1 | AC/DC | Voltage type 2 | DC |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 185 mm2 / 350 kcmil |
Solid conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil |
Fine-stranded conductor | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Fine-stranded conductor; with insulated ferrule | 50 … 150?mm2?/ 1/0?AWG … 300?kcmil |
Fine-stranded conductor; with uninsulated ferrule | 50 … 185?mm2?/ 1/0?AWG … 350?kcmil | Strip length | 45 … 47?mm?/ 1.77 … 1.85?inches |
Wiring direction | Side-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
