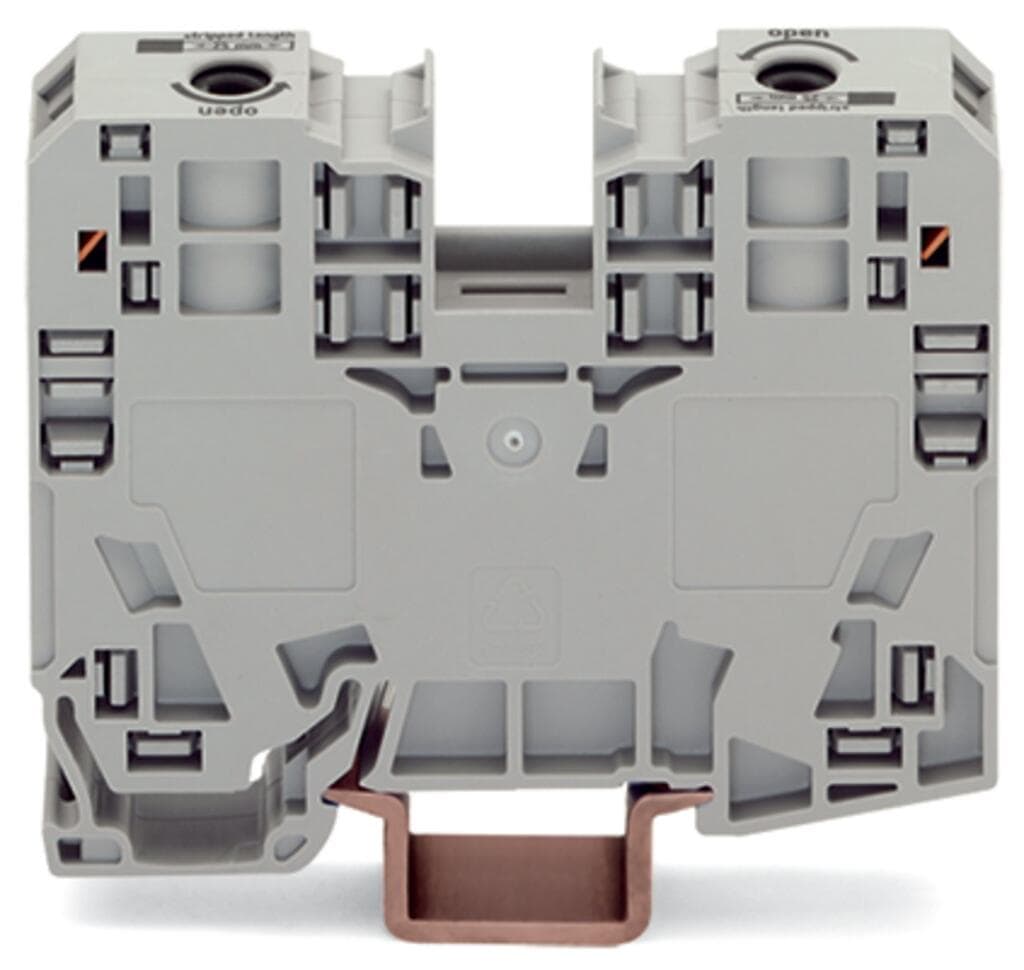

Product Model
285-132
Selling Points
- 1High current capacity up to 125A.
- 2POWER CAGE CLAMP screw connections for secure wiring.
- 3Compatible with DIN 35 x 15 rail mounting.
- 4Supports wire sizes from 6mm² to 35mm² or #8AWG to #2AWG.
- 5Brown color with lateral marker slots for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 16?mm?/ 0.63?inches | Height | 86?mm?/ 3.386?inches |
Depth from upper-edge of DIN-rail | 63?mm?/ 2.48?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | brown |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.31MJ |
Weight | 80.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 15?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143679459 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 125A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 115A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 115A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 115A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group D) | 115A |
Power loss, per pole (potential) | 4.062W | Rated current I<sub>N</sub> for specified power loss | 125A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | POWER CAGE CLAMP |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 35 mm2 | Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG | Fine-stranded conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Fine-stranded conductor; with insulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG | Fine-stranded conductor; with uninsulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG |
Strip length | 25?mm?/ 0.98?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
