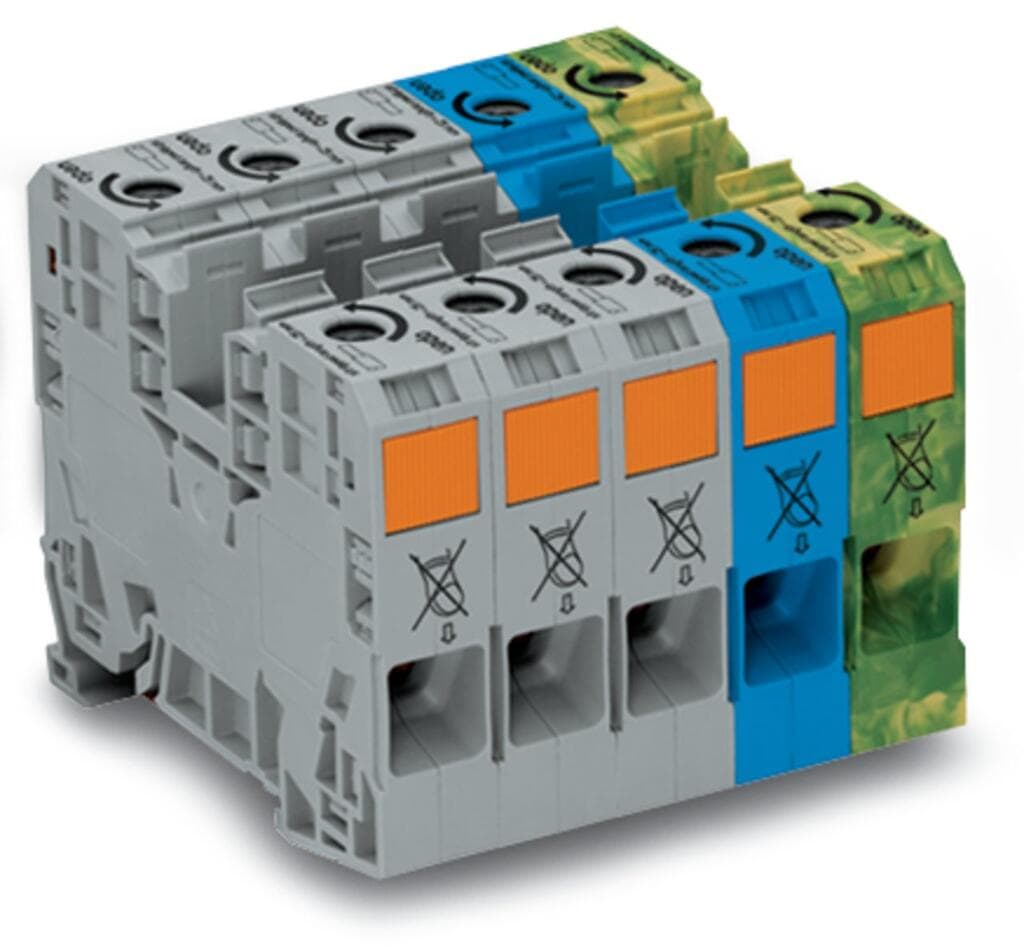

Product Model
285-139
Selling Points
- 1POWER CAGE CLAMP technology ensures reliable and efficient connections.
- 2Designed for easy installation on DIN-35 x 15 carrier rails.
- 3Supports three-phase configurations with neutral and ground connections.
- 4Accommodates solid conductors from 6mm² to 35mm² and stranded conductors from #10AWG to #2AWG.
- 5Made from polyamide (PA66) with a fire load of 6.233 MJ for added safety and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 10 | Total number of potentials | 5 |
Number of levels | 1 | Width | 80?mm?/ 3.15?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 63?mm?/ 2.48?inches |
Design | horizontal type | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 copper rail; 2.3 mm thick | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray/blue/green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 5.177MJ |
Halogen-free | Yes | Weight | 425.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454584252 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 115A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 115A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 115A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group D) | 115A |
Connection technology | POWER CAGE CLAMP | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 35 mm2 |
Solid conductor | 6 … 35?mm2?/ 10 … 2?AWG | Stranded conductor | 6 … 35?mm2?/ 10 … 2?AWG |
Fine-stranded conductor | 6 … 35?mm2?/ 10 … 2?AWG | Fine-stranded conductor; with insulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG |
Fine-stranded conductor; with uninsulated ferrule | 6 … 35?mm2?/ 8 … 2?AWG | Strip length | 25?mm?/ 0.98?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
