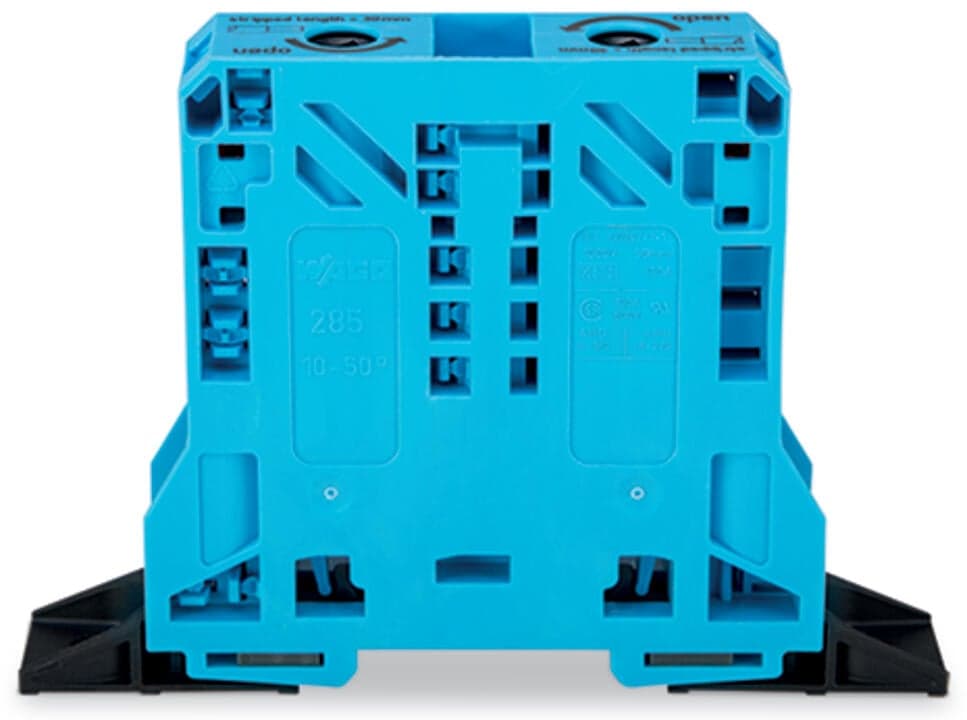

Product Model
285-144
Selling Points
- 1Supports up to 150A current.
- 2Can be flange or surface mounted.
- 3Accommodates wire sizes from 10mm² to 70mm² or #8AWG to #2/0AWG.
- 4Utilizes POWER CAGE-CLAMP screw connections for secure wire clamping.
- 520mm wide, blue in color, with lateral marker slots for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 20?mm?/ 0.787?inches | Height from the surface | 94?mm?/ 3.7?inches |
Depth | 130?mm?/ 5.118?inches | Mounting type | Panel mounting |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 2.038MJ | Weight | 164.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143608312 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 150A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 150A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 150A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 150A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group D) | 150A | Power loss, per pole (potential) | 4.725W |
Rated current I<sub>N</sub> for specified power loss | 150A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 50 mm2 |
Solid conductor | 10 … 50?mm2?/ 8 … 1/0?AWG | Stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG |
Fine-stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG | Fine-stranded conductor; with insulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG |
Fine-stranded conductor; with uninsulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG | Strip length | 30?mm?/ 1.18?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
