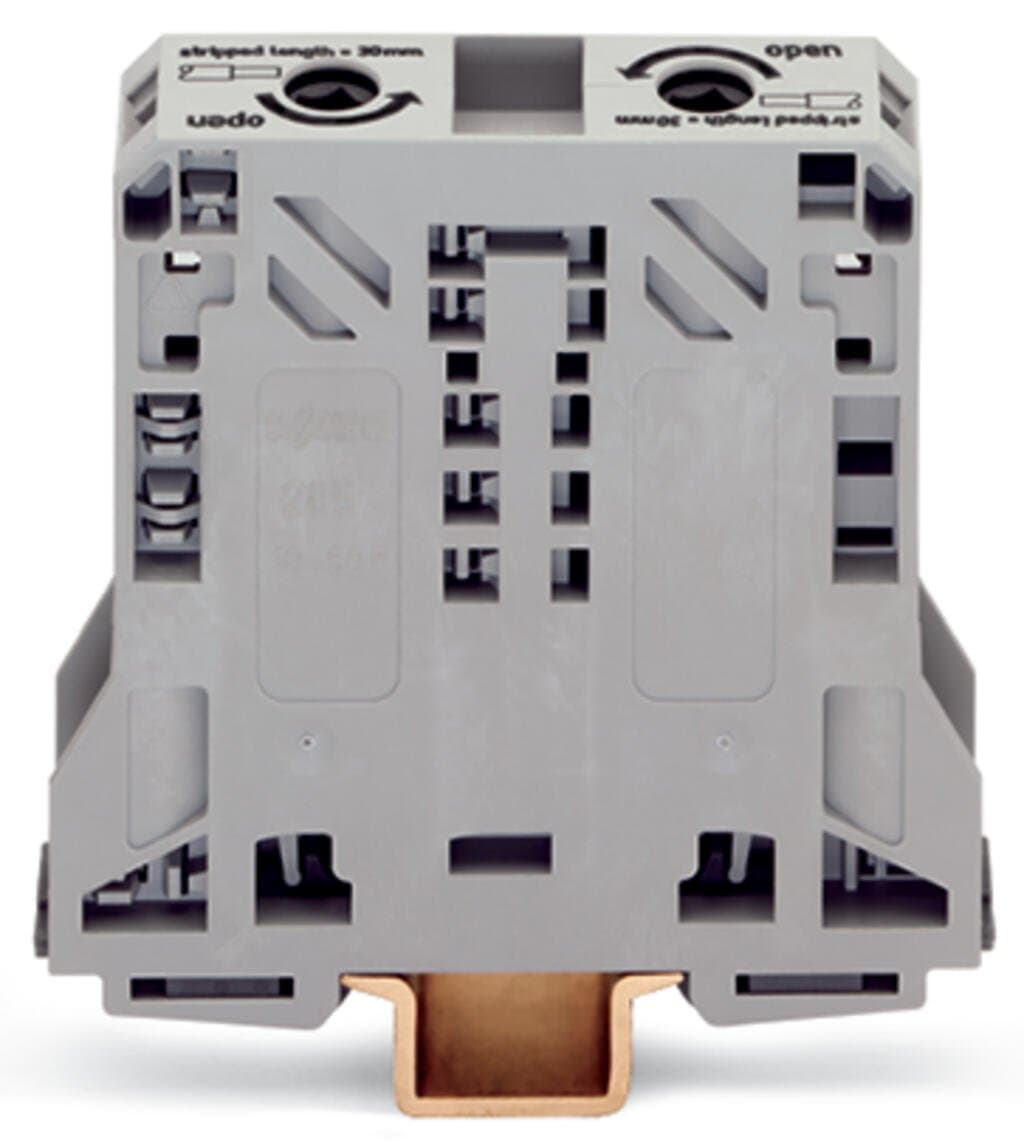

Product Model
285-150
Selling Points
- 1Reliable POWER CAGE CLAMP technology ensures fast, vibration-proof connections.
- 2Designed for demanding industrial applications with a rated current of 150A.
- 3Specifically engineered for DIN 35 x 15 rail mounting, providing easy installation and flexibility.
- 4Supports wire sizes from 10mm² to 70mm² or #8AWG to #2/0AWG, accommodating various conductor types.
- 5RoHS compliant and meets stringent safety standards, ensuring high reliability in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 20?mm?/ 0.787?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 87?mm?/ 3.425?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 2.168MJ |
Weight | 158.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454507411 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 150A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 150A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 150A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 150A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group D) | 150A | Power loss, per pole (potential) | 4.725W |
Rated current I<sub>N</sub> for specified power loss | 150A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 50 mm2 |
Solid conductor | 10 … 50?mm2?/ 8 … 1/0?AWG | Stranded conductor | 10 … 50?mm2?/ 8 … 1/0?AWG |
Fine-stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG | Fine-stranded conductor; with insulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG |
Fine-stranded conductor; with uninsulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG | Strip length | 30?mm?/ 1.18?inches |
Wiring direction | Side-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
