Product Model

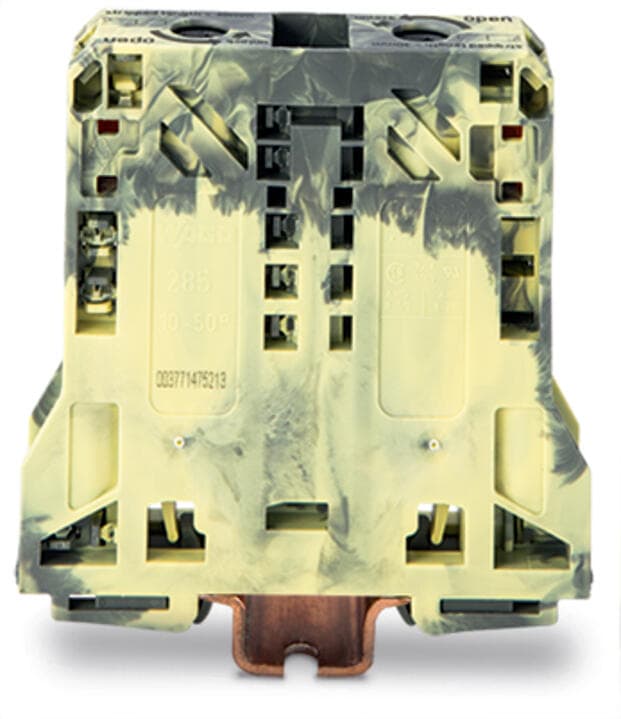

285-151
Selling Points
- 1Supports up to 150A current.
- 2Accommodates wire sizes from 10mm² to 70mm² or #8AWG to #2/0AWG.
- 3Made of polyamide (PA66) for insulation and fire load of 0.000 MJ.
- 4Mounts on DIN-35 rail with side marking slots for easy identification.
- 5Utilizes POWER CAGE CLAMP screw connections for secure wire clamping.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 20?mm?/ 0.787?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 87?mm?/ 3.425?inches | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | dark gray/yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 2.17MJ |
Weight | 158.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143500845 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 150A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 150A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 150A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 150A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group D) | 150A |
Power loss, per pole (potential) | 4.725W | Rated current I<sub>N</sub> for specified power loss | 150A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | POWER CAGE CLAMP |
Actuation type | T-wrench; 8 mm | Connectable conductor materials | Copper |
Nominal cross-section | 50 mm2 | Solid conductor | 10 … 50?mm2?/ 8 … 1/0?AWG |
Stranded conductor | 10 … 50?mm2?/ 8 … 1/0?AWG | Fine-stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG |
Fine-stranded conductor; with insulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG | Fine-stranded conductor; with uninsulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG |
Strip length | 30?mm?/ 1.18?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
