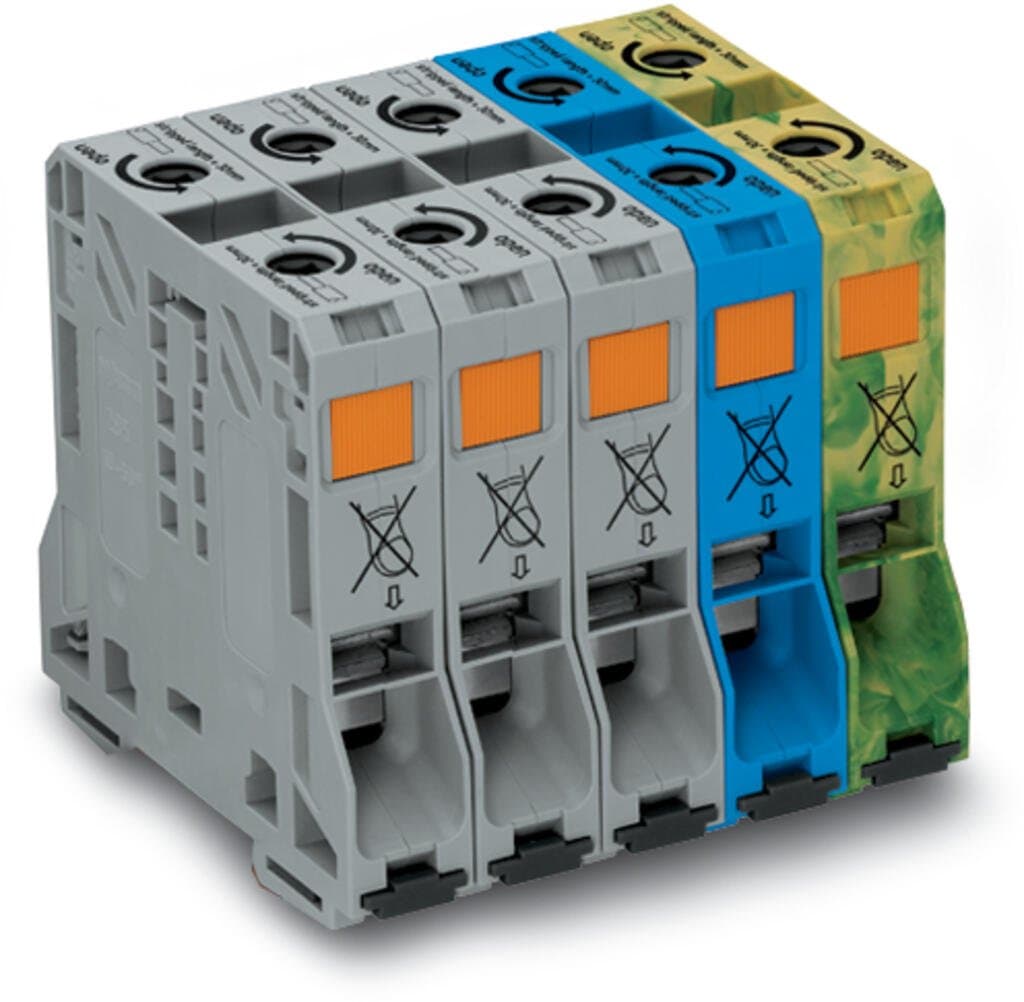

Product Model
285-159
Selling Points
- 1High Current Capability: Handles high currents with ease, making it suitable for demanding industrial applications.
- 2DIN 35 x 15 Rail Mount: Easily integrates into DIN rail systems, providing a secure and organized connection solution.
- 3Two-Conductor Setup: Supports two-conductor configurations, ensuring efficient and reliable power distribution.
- 4Spring Pressure Connection: Features industry-proven spring pressure connection technology for fast, vibration-proof, and maintenance-free connections.
- 5Multicolored Design: Available in a multicolored design for easy identification and coding of connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 10 | Total number of potentials | 5 |
Number of levels | 1 | Width | 100?mm?/ 3.937?inches |
Height | 94?mm?/ 3.701?inches | Depth from upper-edge of DIN-rail | 87?mm?/ 3.425?inches |
Design | horizontal type | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 copper rail; 2.3 mm thick | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray/blue/green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 10.808MJ |
Halogen-free | Yes | Weight | 812.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454584269 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 150A |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 150A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 150A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 150A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group D) | 150A | Connection technology | POWER CAGE CLAMP |
Actuation type | T-wrench; 8 mm | Connectable conductor materials | Copper |
Nominal cross-section | 50 mm2 | Solid conductor | 10 … 50?mm2?/ 8 … 1/0?AWG |
Stranded conductor | 10 … 50?mm2?/ 8 … 1/0?AWG | Fine-stranded conductor | 10 … 70?mm2?/ 8 … 2/0?AWG |
Fine-stranded conductor; with insulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG | Fine-stranded conductor; with uninsulated ferrule | 10 … 50?mm2?/ 8 … 1/0?AWG |
Strip length | 30?mm?/ 1.18?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
