Product Model

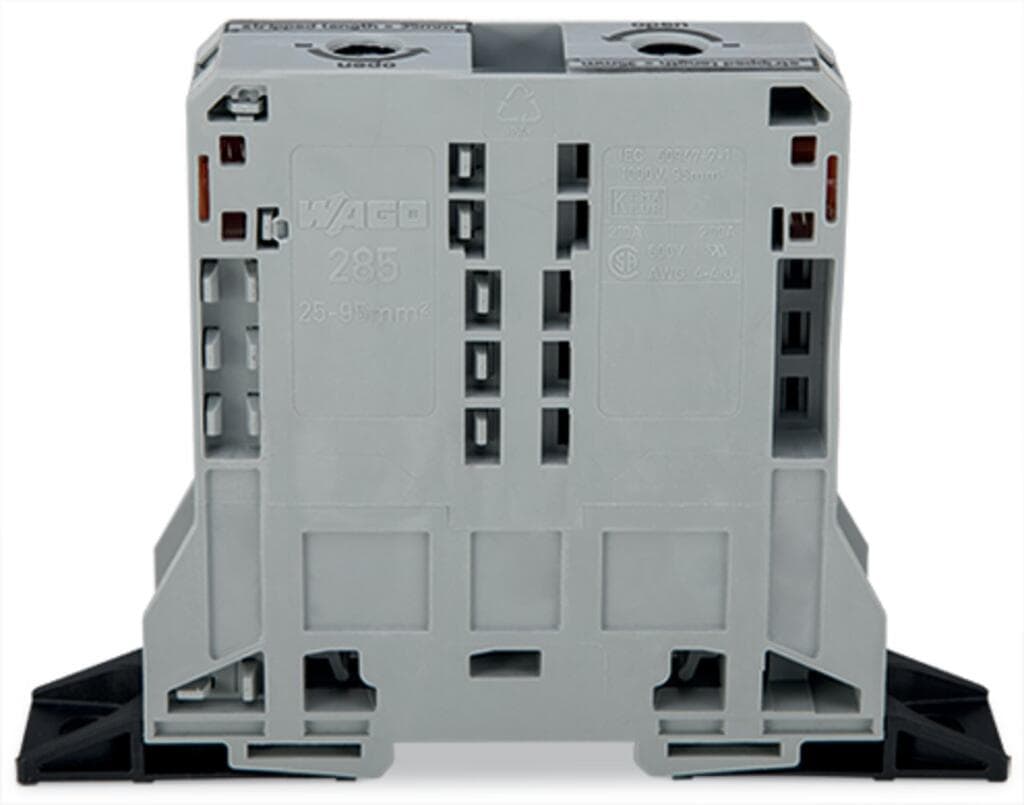

285-181
Selling Points
- 1High-Performance Connectivity: The WAGO 285-181 features CAGE CLAMP technology for secure and tool-free conductor connections.
- 2Durable Design: Constructed with robust materials, ensuring long-lasting performance in demanding electrical environments.
- 3Easy Installation: Designed for quick and effortless mounting on DIN rail, reducing installation time and effort.
- 4Versatile Application: Suitable for a wide range of applications, including industrial control systems and power distribution units.
- 5Gray Color Coding: Gray color coding for easy identification and organization in complex electrical setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 25?mm?/ 0.984?inches | Height from the surface | 108?mm?/ 4.252?inches |
Depth | 145?mm?/ 5.709?inches | Mounting type | Mounting flanges |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 3.782MJ | Weight | 266g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143583930 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 12kV |
Rated current | 232A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Rated voltage (III/3) 2 | 1500V | Rated surge voltage (III/3) 2 | 12kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 200A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 200A | Rated voltage CSA (Use Group B) | 1000V |
Rated current CSA (Use Group B) | 210A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group D) | 210A | Power loss, per pole (potential) | 7.535W |
Rated current I<sub>N</sub> for specified power loss | 232A | Resistance value for specified, current-dependent power loss | 0Ω |
Voltage type 1 | AC/DC | Voltage type 2 | DC |
Connection technology | POWER CAGE CLAMP | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Nominal cross-section | 95 mm2 |
Solid conductor | 25 … 95?mm2?/ 4 … 4/0?AWG | Stranded conductor | 25 … 95?mm2?/ 4 … 4/0?AWG |
Fine-stranded conductor | 25 … 95?mm2?/ 4 … 4/0?AWG | Fine-stranded conductor; with insulated ferrule | 25 … 95?mm2?/ 4 … 4/0?AWG |
Fine-stranded conductor; with uninsulated ferrule | 25 … 95?mm2?/ 4 … 4/0?AWG | Strip length | 35?mm?/ 1.38?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
