wagoRail Chassis Terminal Blocks
Product Model

285-407

Manufacturer

wago

Category

Rail Chassis Terminal Blocks

Product ID

45176

In Stock
Last updated: 2025/4/20
View Specifications

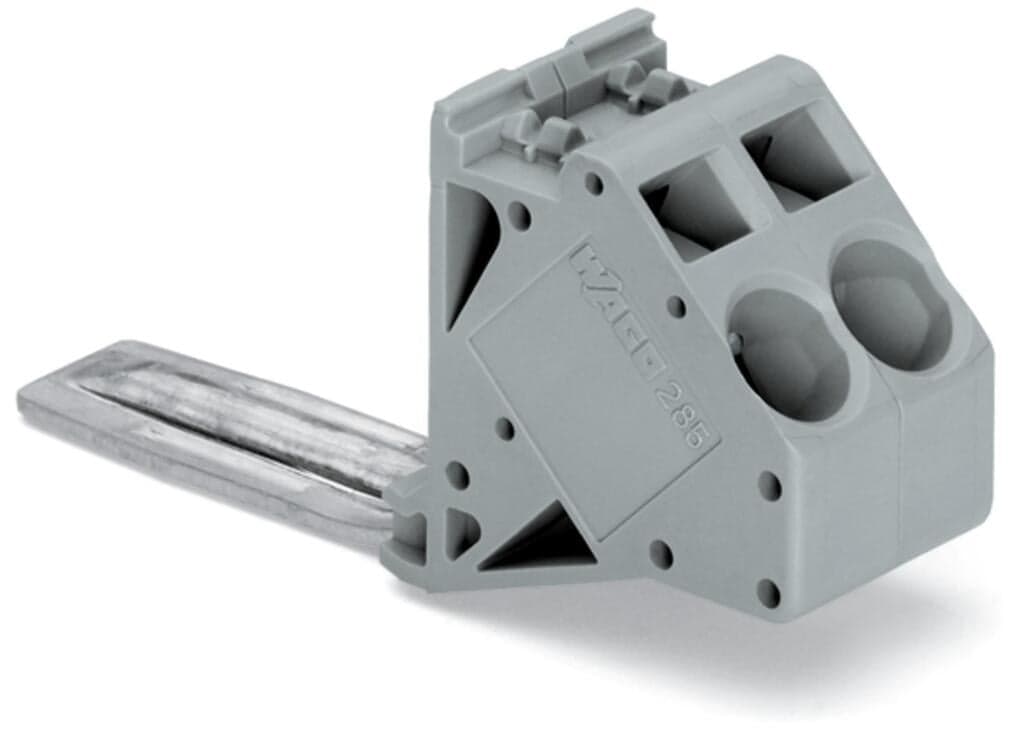

wago 285-407

Selling Points

  • 1High-current rating: 57A at 800V.
  • 2CAGE CLAMP connection technology for secure connections.
  • 3Compatible with 95mm² feed-through terminal blocks.
  • 4Front-entry wiring design for easy installation.
  • 5Made from durable polyamide (PA66) insulation material.
Product Details
285-407
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
2
Total number of potentials
1
Width
20?mm?/ 0.787?inches
Module width
20?mm?/ 0.787?inches
Design
angled
Marking level
Center marking
Note (material data)
Information on material specifications can be found here
Color
gray
Insulation material (main housing)
Polyamide (PA66)
Fire load
0.286MJ
Weight
22.6g
Product Group
1 (Rail Mounted Terminal Blocks)
eCl@ss 10.0
27-14-11-92
eCl@ss 9.0
27-14-11-92
ETIM 9.0
EC002848
ETIM 8.0
EC002848
ECCN
NO US CLASSIFICATION
PU (SPU)
5?pcs
Packaging type
box
Country of origin
PL
GTIN
4045454326241
Customs tariff number
8536698000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-1
Rated voltage (III / 3)
1000V
Rated impulse voltage (III / 3)
8kV
Rated current
57A
Approvals per
CSA 22.2 No 158
Rated voltage UL (Use Group B)
600V
Rated current UL (Use Group B)
50A
Rated voltage UL (Use Group C)
600V
Rated current UL (Use Group C)
50A
Rated voltage CSA (Use Group B)
600V
Rated current CSA (Use Group B)
57A
Rated voltage CSA (Use Group C)
600V
Rated current CSA (Use Group D)
57A
Connection technology
CAGE CLAMP?
Nominal cross-section
10 mm2
Solid conductor
0.2 … 16 mm2 / 24 … 6 AWG
Fine-stranded conductor
0.2 … 16 mm2 / 24 … 6 AWG
Strip length
12 … 13?mm?/ 0.47 … 0.51?inches
Wiring direction
Front-entry wiring

Specifications may be subject to change without notice
