Product Model
285-447
Selling Points
- 1High-Current Capability: Rated for 800 volts and 41 Amps, suitable for demanding electrical applications.
- 2Versatile Design: Compatible with 50 mm² feed-through terminals, part numbers 285-150, 285-154, 285-157.
- 3Easy Installation: Simply insert into the top of the feed-through terminal for quick expansion.

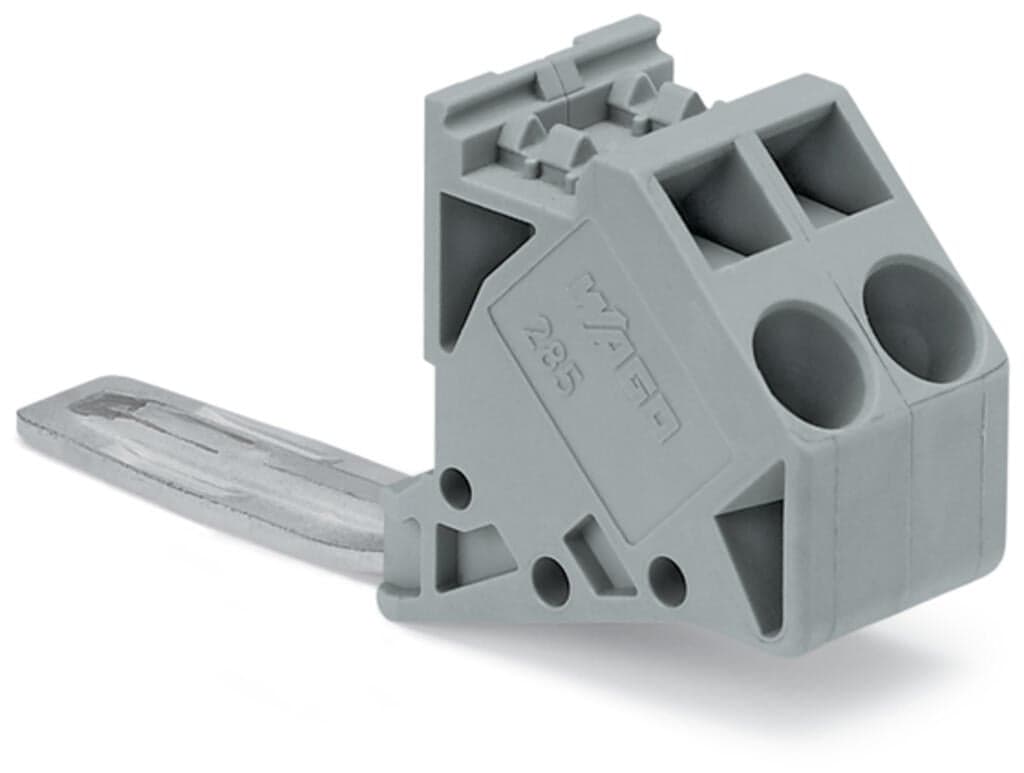

- 4Durable Construction: Grey power tap with a module width of 16 mm, ensuring reliable performance.
- 5Wide Conductor Capacity: Supports conductors from 0.2 to 6 mm², catering to various electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Width | 16?mm?/ 0.63?inches | Module width | 16?mm?/ 0.63?inches |
Design | angled | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.199MJ | Weight | 13g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454549657 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 41A |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 30A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 30A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 41A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group D) | 41A | Connection technology | CAGE CLAMP? |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
