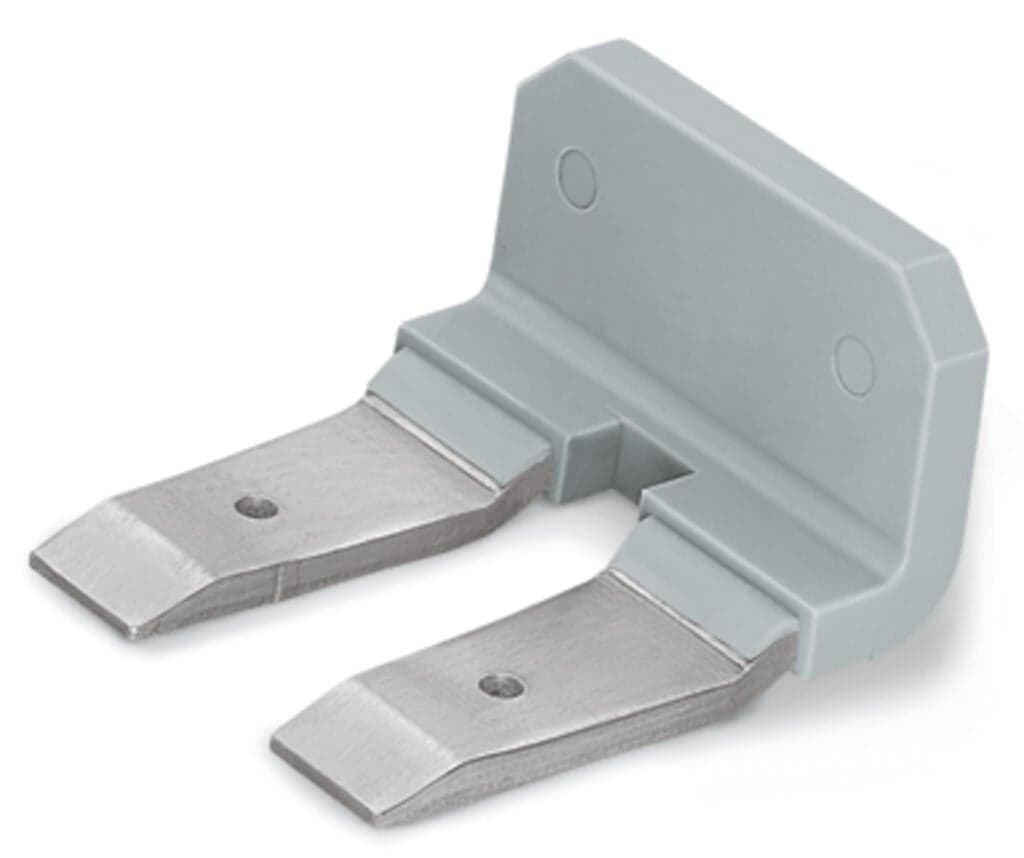

Product Model
285-495
Selling Points
- 1Ideal for high current applications with a nominal current of 232 A.
- 2Insulated and grey jumper design for safe and reliable connections.
- 3Perfect for expanding existing feed through blocks to provide more connectivity options.
- 4Compatible with 95mm² terminal blocks, enhancing circuit flexibility.
- 5Durable and resistant gas-sealed contact for safe shunt of short-circuit currents.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42 mm / 1.654 inches | Height | 25 mm / 0.984 inches |
Depth | 47 mm / 1.85 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.162MJ | Weight | 55g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918269490 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 232A | Rated current (Ex e II) | 211A |
Specifications may be subject to change without notice
