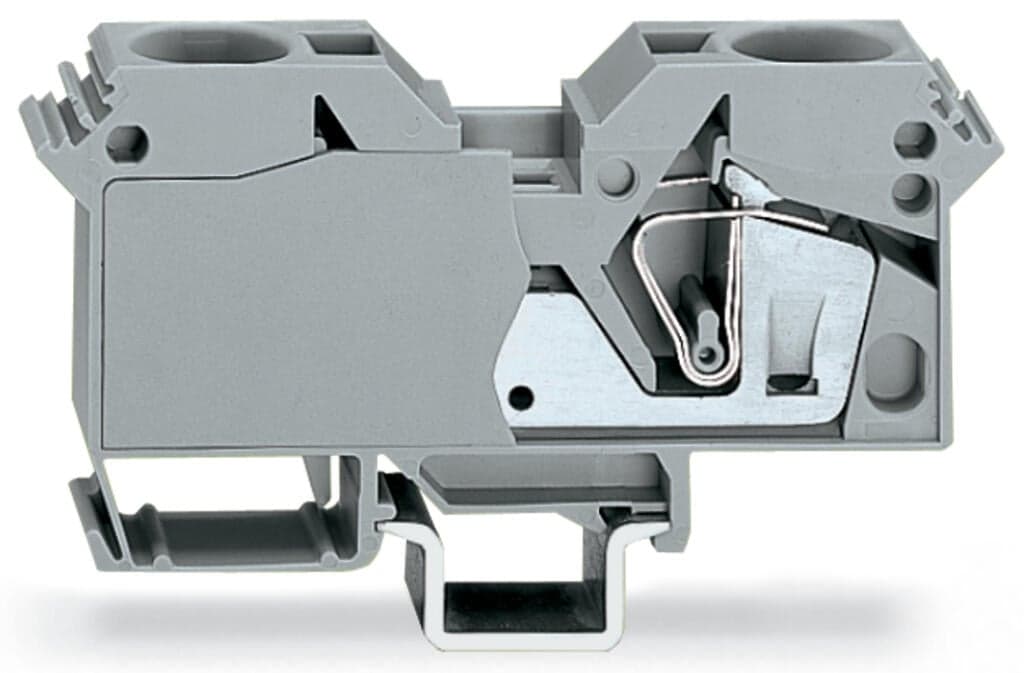

Product Model
285-604
Selling Points
- 1Reliable connection technology with CAGE CLAMP.
- 2Rated current of 125A for high-power applications.
- 3Front-entry wiring for easy conductor insertion.
- 4Insulated with polyamide (PA66) for electrical safety.
- 5Compact design at 16 mm width for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 16?mm?/ 0.63?inches |
Height | 115.5?mm?/ 4.547?inches | Depth from upper-edge of DIN-rail | 52.5?mm?/ 2.067?inches |
Design | horizontal type | Mounting type | DIN-rail mounting |
Mounting (note) | only suitable for DIN 35 x 15 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.611MJ |
Weight | 131.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 15?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454115357 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 125A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 4.062W |
Rated current I<sub>N</sub> for specified power loss | 125A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 6 … 35?mm2?/ 8 … 2?AWG |
Strip length | 23?mm?/ 0.91?inches | Wiring direction | Front-entry wiring |
