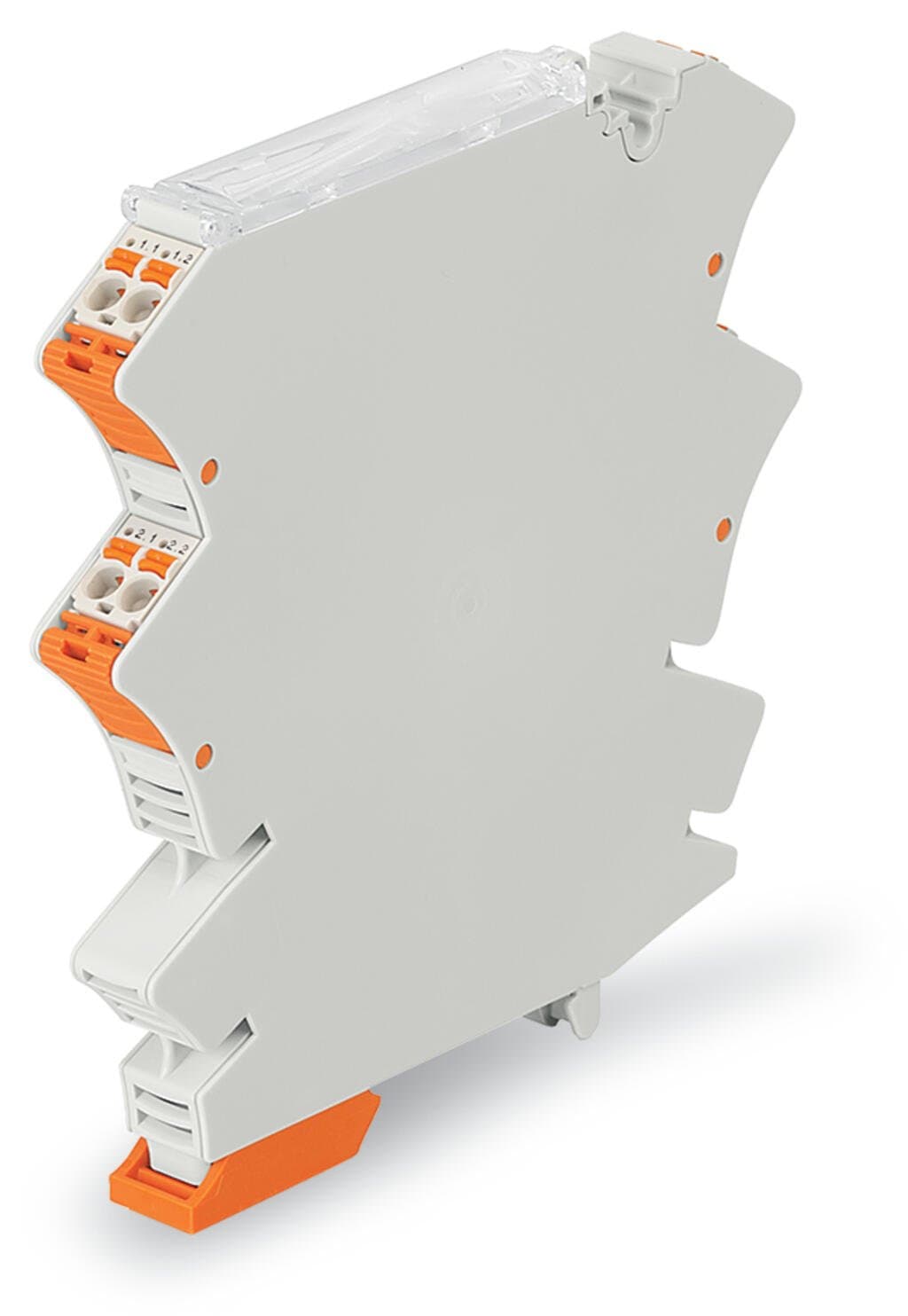

Product Model
2857-101
Selling Points
- 1Built to withstand harsh industrial environments.
- 2Quick and simple setup for seamless integration.
- 3Ensures long-lasting performance and reliability.
- 4Suitable for various relay and signal conditioner applications.
- 5Affordable price point without compromising on quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Permissible power loss (max.) | 2W | Number of poles | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12.5?mm?/ 0.492?inches | Height | 108?mm?/ 4.252?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Pin spacing | 5?mm?/ 0.197?inches |
Mounting type | DIN-35 rail | Flammability class per UL94 | V0 |
Housing material | PC | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Fire load | 1.509MJ | Weight | 60g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821561392 |
Customs tariff number | 85480090990 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | c05202e7-d4de-48cb-8724-e15d153e0333 |
SCIP notification number (Belgium) | 4631b4d1-0462-4e56-9a43-6eef783b4c84 | SCIP notification number (Bulgaria) | b86550b2-431b-49fb-a643-1cd0340ee704 |
SCIP notification number (Czech Republic) | b6718a11-212f-4cdc-8a6b-d0c633f23e69 | SCIP notification number (Denmark) | 69f56c01-9914-4bbc-8414-b94ba4c186d3 |
SCIP notification number (Finland) | f6ed5b90-9fdc-438a-852d-1de522accbb3 | SCIP notification number (France) | c49142d6-2ef9-4479-aeb3-7c4913fad48f |
SCIP notification number (Germany) | 4b841f01-5fd4-430f-88d9-17698b9a57d1 | SCIP notification number (Hungary) | 07640279-1327-4e9d-bd64-a4ba5b59d8e6 |
SCIP notification number (Italy) | d2dbc42c-2fd4-4054-9abe-5f92b9b8ad8f | SCIP notification number (Netherlands) | 6d4253a0-7aaf-4cbf-8257-64b3e11b128e |
SCIP notification number (Poland) | a3fa2fa3-a9a8-4433-88be-d6fd1e2a3dd7 | SCIP notification number (Romania) | 7636ca4c-c85c-433d-8bc3-a3c095d68579 |
SCIP notification number (Sweden) | 3928b904-3974-46f7-afb4-3c7f380db1f9 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Rated current UL (Use Group D) | 10A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Specifications may be subject to change without notice
