Product Model
2857-102
Selling Points

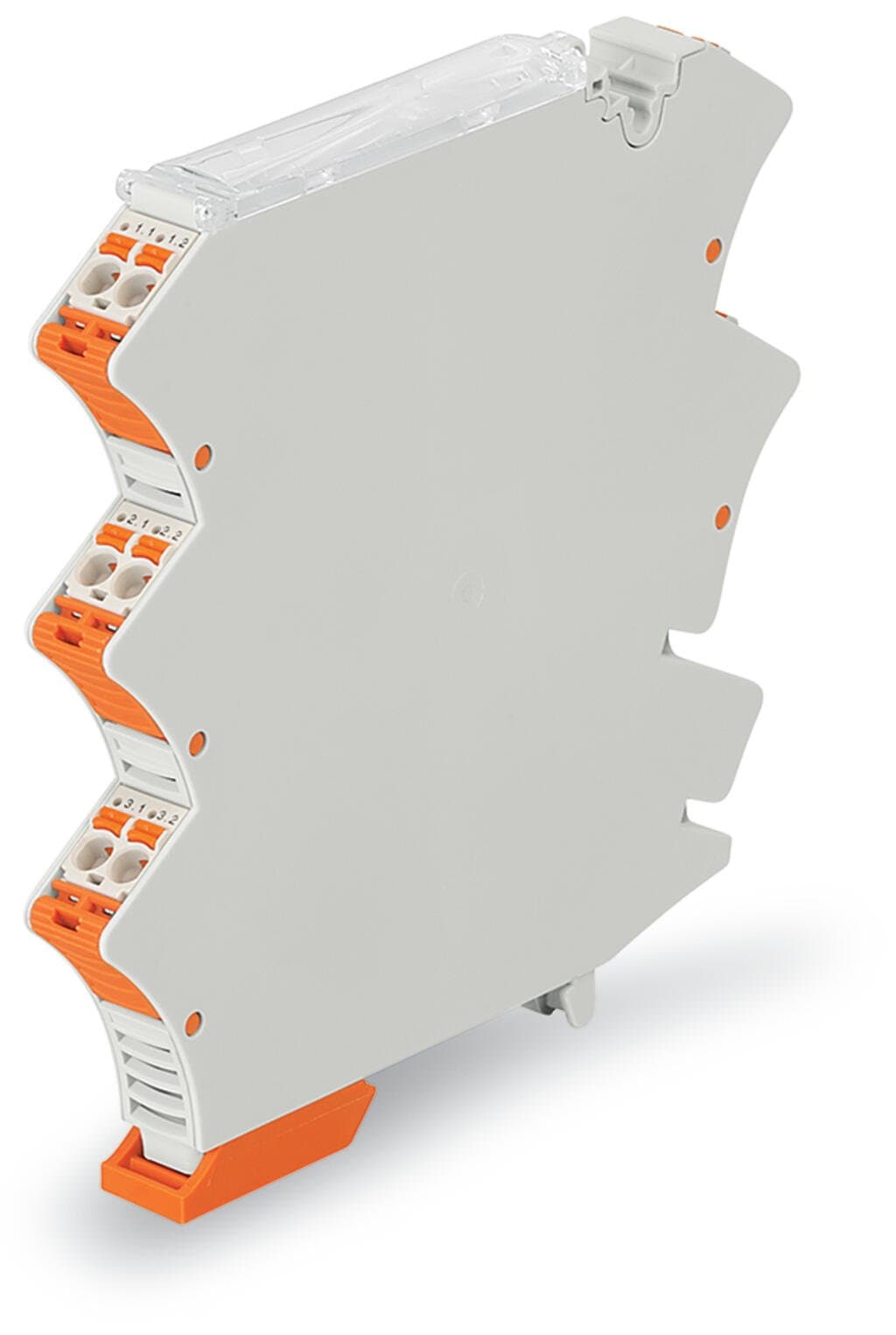

- 1Customizable Universal Component Housing: Designed for DIN-35 rail mounting with a triple-deck configuration.
- 2Wide Wire Compatibility: Suitable for wire sizes ranging from 0.2mm² to 2.5mm² or #24AWG to #12AWG.
- 3Easy Installation: Features Push-in CAGE CLAMP spring connections for secure and easy wire installation.
- 4RoHS Compliant: Meets RoHS standards with exemptions, ensuring environmental compliance.
- 5Versatile Marking Options: Available with various marking options to suit different application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Permissible power loss (max.) | 2W | Number of poles | 2 |
Number of levels | 3 | Number of jumper slots | 2 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12.5?mm?/ 0.492?inches | Height | 110?mm?/ 4.331?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Pin spacing | 5?mm?/ 0.197?inches |
Mounting type | DIN-35 rail | Flammability class per UL94 | V0 |
Housing material | PC | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Fire load | 1.556MJ | Weight | 63g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821561408 |
Customs tariff number | 8547200000 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | e1be5dae-46d9-4e93-bffa-40c1c490c325 |
SCIP notification number (Belgium) | f09ce94f-02c5-4968-b8ec-a01645fe7085 | SCIP notification number (Bulgaria) | 3c9c4225-faba-4e9c-a796-4d07c8b65247 |
SCIP notification number (Czech Republic) | 6f98091b-90d7-4dfd-af77-0e17c97d9d9b | SCIP notification number (Denmark) | 7a8f464d-fe0b-4a7a-9797-bd6b3bae2983 |
SCIP notification number (Finland) | 87221bfd-4b97-4639-8622-bf918110a86f | SCIP notification number (France) | 6a7dee2b-5bb4-4dac-83ac-ef24d9473318 |
SCIP notification number (Germany) | 7a7b76f3-1c4e-479a-ac58-b35536c028ce | SCIP notification number (Hungary) | 2bd65953-1698-49e8-8017-39084f087f82 |
SCIP notification number (Italy) | 3579be6e-e3ce-4ee8-bf42-98f8f2733f85 | SCIP notification number (Netherlands) | 0b27f6e0-3cfc-4b07-a7a9-2c1224162f9e |
SCIP notification number (Poland) | a6054ed7-14d8-4e46-8340-5a59e7a481b2 | SCIP notification number (Romania) | 13fcc686-4988-4925-a287-6a5745e9bc50 |
SCIP notification number (Sweden) | 844c31aa-0d51-4e00-a1b5-3a61f21b1d8e | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Rated current UL (Use Group D) | 10A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Specifications may be subject to change without notice
