Product Model

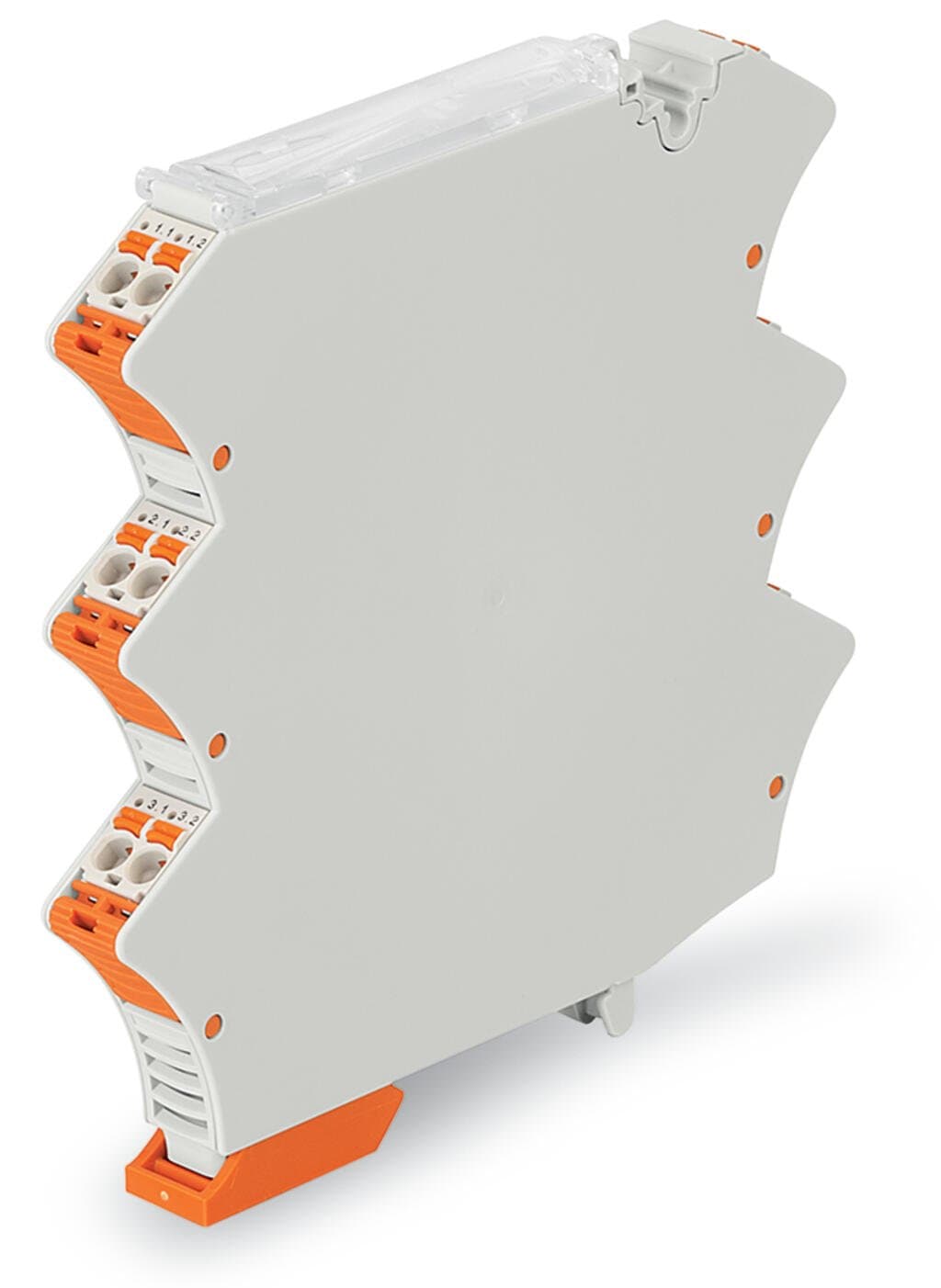

2857-103
Selling Points
- 1Efficient Machine I/O Subsystem: Designed for seamless integration into machine I/O systems.
- 2Push-in CAGE CLAMP Connections: Easy and secure conductor insertion and removal.
- 3Customizable Connection Levels: Flexible conductor termination options available.
- 4Robust Construction: Made from high-quality polycarbonate (PC) and chrome-nickel spring steel.
- 5Compliant with Standards: Meets UL, IEC, and CSA standards with a V-0 flammability rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Permissible power loss (max.) | 2W | Number of poles | 2 |
Number of levels | 3 | Number of jumper slots | 0 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12.5?mm?/ 0.492?inches | Height | 112?mm?/ 4.41?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Pin spacing | 5?mm?/ 0.197?inches |
Mounting type | DIN-35 rail | Flammability class per UL94 | V0 |
Housing material | PC | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Fire load | 1.606MJ | Weight | 66g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821561415 |
Customs tariff number | 8547200000 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 0af7c045-e7f0-49c4-ab13-95515a58b10b |
SCIP notification number (Belgium) | 8179037e-9b72-41d7-a5eb-29b7d01bb747 | SCIP notification number (Bulgaria) | a39c1241-d109-4f77-9278-d8448c68b6ce |
SCIP notification number (Czech Republic) | 9ab81a97-288d-4182-8c69-db510d713a69 | SCIP notification number (Denmark) | f0129db3-007b-48ff-8c20-dac1a9864bb8 |
SCIP notification number (Finland) | fc6017bd-d824-4873-8a98-706e4026f889 | SCIP notification number (France) | f6daac7f-f386-4991-948b-506a96511318 |
SCIP notification number (Germany) | 9b12d5fc-1866-486c-a888-3258f578fbb5 | SCIP notification number (Hungary) | 195b1d2c-c9c1-44d3-b000-ed2ae82a6811 |
SCIP notification number (Italy) | 6af0cd4b-b2e7-4286-a5bd-00e12ed0e669 | SCIP notification number (Netherlands) | 6d68db97-6af0-4947-829b-53b489e55015 |
SCIP notification number (Poland) | 34d059eb-b3d2-4b7a-84d2-89d6658fa921 | SCIP notification number (Romania) | b55edcd4-355f-4e31-8394-3248b494f8c0 |
SCIP notification number (Sweden) | 939f89b5-b233-48a8-aa1c-6efb49b2c4d4 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Rated current UL (Use Group D) | 10A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Specifications may be subject to change without notice
