Product Model

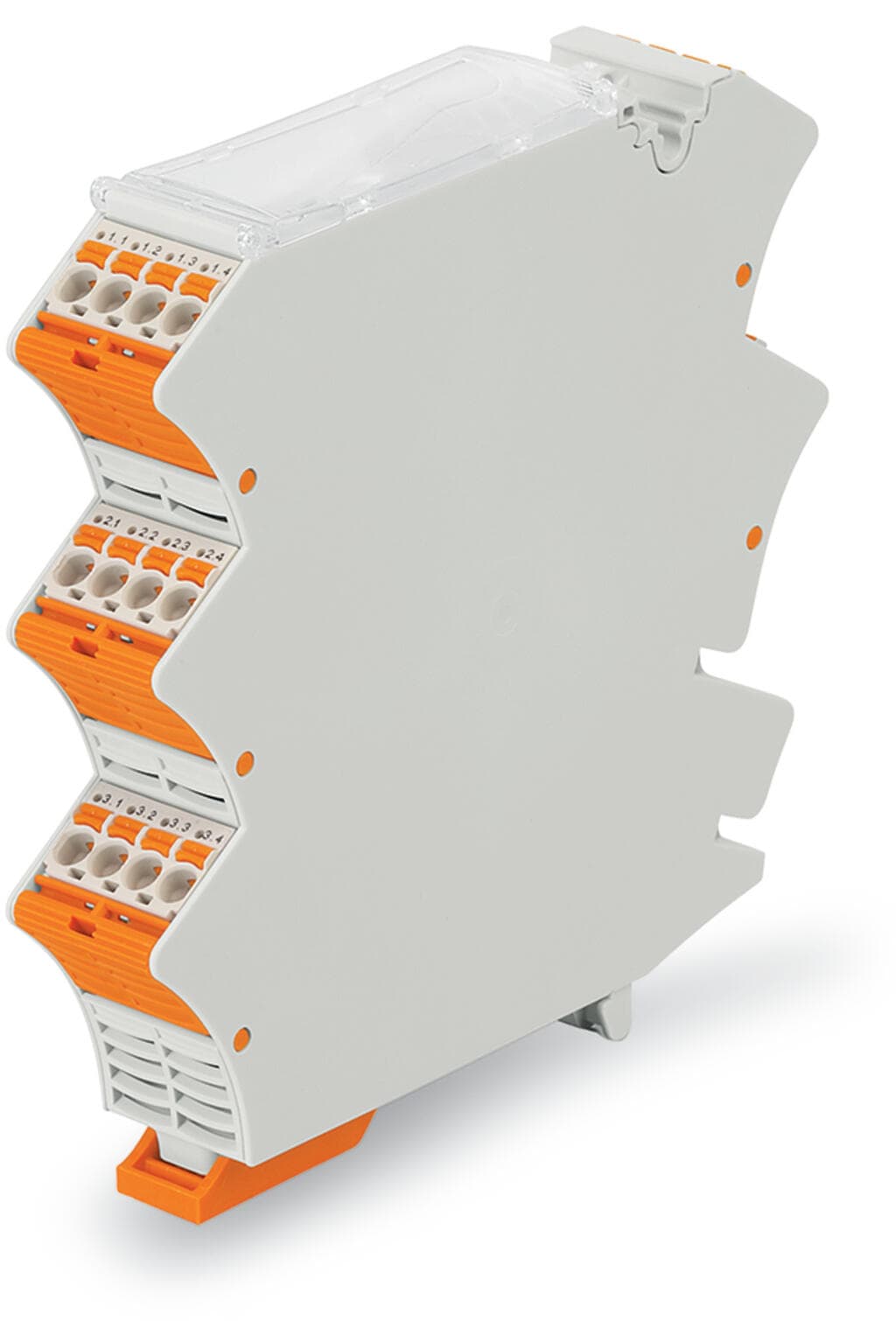

2857-122
Selling Points
- 1Tailor your connections with up to three levels on both sides.
- 2Easily mount on DIN rail TS35 for flexible installation.
- 3Securely connect conductors with push-in cage clamp technology.
- 4Meets stringent safety standards with UL and CSA approvals.
- 5Comes pre-assembled with picoMAX female connectors for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Permissible power loss (max.) | 3W | Number of poles | 4 |
Number of levels | 3 | Number of jumper slots | 2 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 22.5?mm?/ 0.886?inches | Height | 110?mm?/ 4.331?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Pin spacing | 5?mm?/ 0.197?inches |
Mounting type | DIN-35 rail | Flammability class per UL94 | V0 |
Housing material | PC | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Fire load | 2.168MJ | Weight | 99.7g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821561439 |
Customs tariff number | 8547200000 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 20b824e5-d556-48d0-9390-b52546135bb6 |
SCIP notification number (Belgium) | 66585704-1b18-478d-ab72-fb2261a2bc90 | SCIP notification number (Bulgaria) | 359d1397-7d1a-4ef2-917d-df3cdb8f9dcb |
SCIP notification number (Czech Republic) | b35ace4d-829f-44cc-a021-b13342303dfb | SCIP notification number (Denmark) | d3e5ef67-bea4-48fb-a237-664dc478f183 |
SCIP notification number (Finland) | 4e9fbda5-8e13-486f-a7cf-723d1ac3eeb8 | SCIP notification number (France) | 3acc5873-1b11-4448-a589-5a844904f35d |
SCIP notification number (Germany) | dd82b1a3-1845-4083-a047-8d7dca0639fd | SCIP notification number (Hungary) | 15ea4ffb-3d30-4cca-a0a9-3ff7c6ab5420 |
SCIP notification number (Italy) | fa984891-090a-43d1-988a-90224f769a72 | SCIP notification number (Netherlands) | 37a1cad6-6438-4efb-b3d6-65917ce2a994 |
SCIP notification number (Poland) | 67aa548d-ef89-46d6-bf1d-68e45a73806a | SCIP notification number (Romania) | 6e891b48-1170-46df-810b-f4d4d736751b |
SCIP notification number (Sweden) | 6a34ec7a-b023-41ff-8974-a32ca79cbe2c | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Rated current UL (Use Group D) | 10A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Specifications may be subject to change without notice
