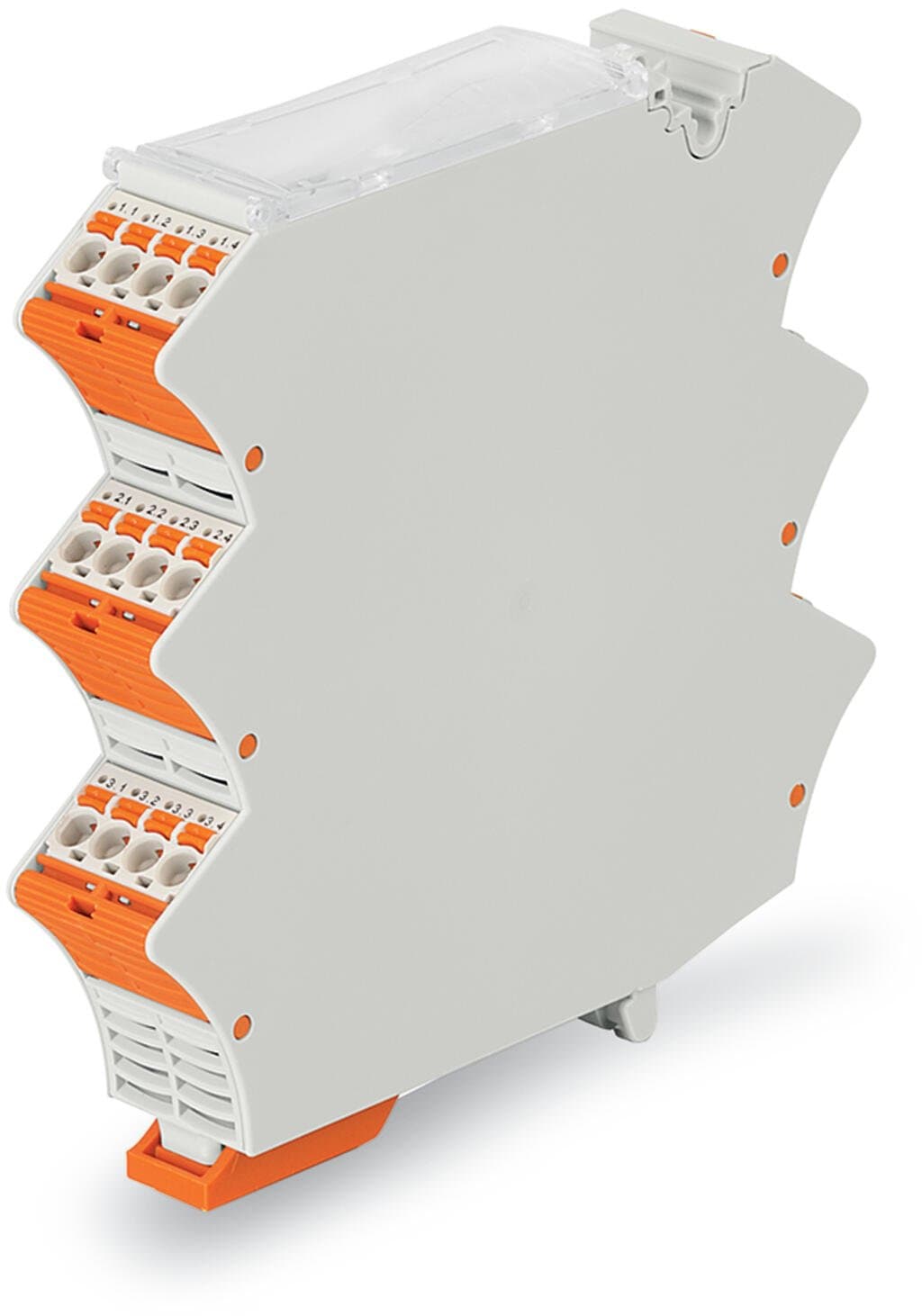

Product Model
2857-123
Selling Points
- 1Flexibler Leiteranschluss: Effizient und sicherer Anschluss von bis zu 60 Leitern.
- 2Individuelle Konfiguration: Anpassbare Anschlussebenen für Ihre spezifischen Bedürfnisse.
- 3Verschiedene Beschriftungsmöglichkeiten: Gut sichtbare und kodierbare Beschriftung jeder Klemmstelle.
- 4Plombierbare transparente Abdeckung: Schutz und Sicherheit durch transparente Abdeckung.
- 5Brückungsmöglichkeit für Brücker 859-402: Erweiterte Funktionen für zusätzliche Anwendungen.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Permissible power loss (max.) | 3W | Number of poles | 4 |
Number of levels | 3 | Number of jumper slots | 0 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 22.5?mm?/ 0.886?inches | Height | 112?mm?/ 4.41?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Pin spacing | 5?mm?/ 0.197?inches |
Mounting type | DIN-35 rail | Flammability class per UL94 | V0 |
Housing material | PC | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Fire load | 2.241MJ | Weight | 106.1g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-18-27-02 |
eCl@ss 9.0 | 27-18-27-02 | ETIM 9.0 | EC001031 |
ETIM 8.0 | EC001031 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821561446 |
Customs tariff number | 8547200000 | REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 7e380ee9-74af-4972-a5e2-8cbe68601e52 |
SCIP notification number (Belgium) | f389bbed-454a-4276-8ed7-ada5433759e3 | SCIP notification number (Bulgaria) | ac1ccd4c-f068-4b1b-86f4-148f12fbc1e6 |
SCIP notification number (Czech Republic) | c38893fa-a012-4627-99f7-4cb811e61450 | SCIP notification number (Denmark) | 07765870-3055-4dd4-a8fe-6dbd893fece7 |
SCIP notification number (Finland) | e87f43e2-719e-4ca3-9082-3c1260f6b1df | SCIP notification number (France) | c5fe07e1-16da-4526-9879-5756d64ea7e5 |
SCIP notification number (Germany) | d8747c26-b97d-4b80-a951-fa6a73f60418 | SCIP notification number (Hungary) | d696c1e6-0edc-4f3a-9923-cdd0e0551f6e |
SCIP notification number (Italy) | 88c369f9-865e-4602-bffe-faab7c04de80 | SCIP notification number (Netherlands) | 0a997275-70a6-4d10-9db7-665ee6002239 |
SCIP notification number (Poland) | 43a63121-6a11-4e59-b8ff-82b7f3232881 | SCIP notification number (Romania) | a8270e15-cb9d-4ae6-827a-675942c6c4d6 |
SCIP notification number (Sweden) | 087e1709-3635-4eed-916a-52db5daccd95 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Rated current UL (Use Group D) | 10A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Specifications may be subject to change without notice
