Product Model

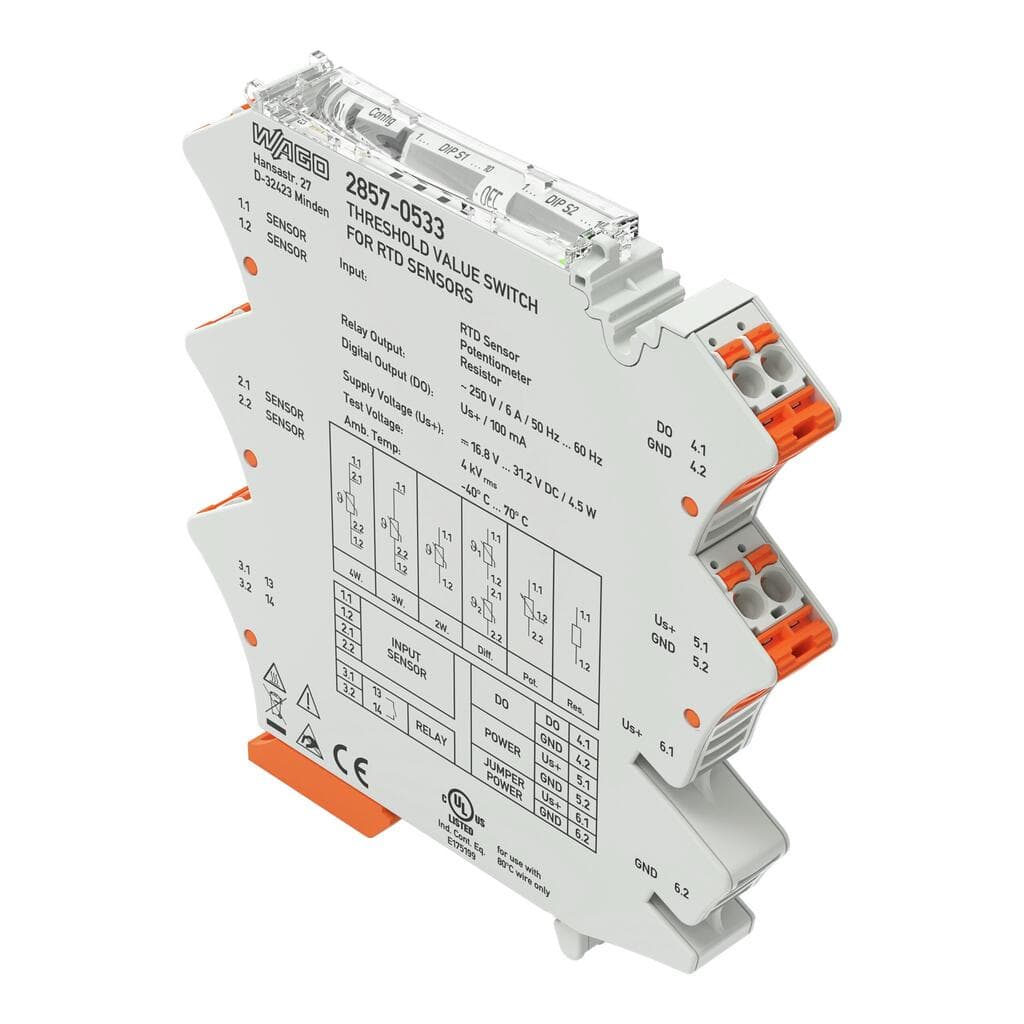

2857-533
Selling Points
- 1Configure up to two threshold values for precise measurement range limits.
- 2Ensures safe three-way isolation with a 4 kV test voltage per EN 61010-1.
- 3Easily adjust RTD factors for optimal sensor performance.
- 4Built with a robust design, suitable for temperatures from -40 to 70°C.
- 5Supports 24 to 12 AWG solid conductors and features picoMAX® connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded. | Rated voltage | 300V |
Rated voltage of the measurement circuit connections per EN 61010-2-030 | AC?300 V | Measurement category per EN/UL 61010-2-030 | CAT II (input) |
Note on insulation parameters | Temperature sensors are not intended for use in dangerous circuits, provided the external temperature sensors used do not have basic insulation in accordance with EN/UL 61010-1 (300 VAC; overvoltage category II; pollution degree 2). | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | picoMAX?5.0 |
Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12.5?mm?/ 0.492?inches |
Height | 110?mm?/ 4.331?inches | Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches |
Mounting type | DIN-35 rail | Fire load | 1.573MJ |
Weight | 86.6g | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Temperature range of connection cable | ≥ (Tambient+ 10 K) |
Temperature range of connection cable (UL) | 80°C | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2; EN 61326-2-3; EN 50121-3-2 | EMC emission of interference | EN 61000-6-4; EN 61326-2-3; EN 50121-3-2 |
Standards/specifications | EN 61010-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-18-10 | eCl@ss 9.0 | 27-37-18-10 |
ETIM 9.0 | EC001446 | ETIM 8.0 | EC001446 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4050821676973 | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 5dacf9f1-acec-4030-a576-2066861dd611 | SCIP notification number (Belgium) | 93a2e53f-f28c-4be6-803b-f05ac560dbc3 |
SCIP notification number (Bulgaria) | 2674e09f-f188-47ca-907f-6da7555f3cbe | SCIP notification number (Czech Republic) | 53482b4c-731d-46d7-978a-76349083b4ae |
SCIP notification number (Denmark) | bd15bcb7-0805-48fd-804d-7c2b0575624e | SCIP notification number (Finland) | f95a8eb7-dda8-4f0f-a6a7-71055557790a |
SCIP notification number (France) | a95114a5-e653-4a5c-9d8d-4217bd36673b | SCIP notification number (Germany) | 5058fdd7-a366-4ffa-9b3b-8dc6348e2b84 |
SCIP notification number (Hungary) | 53cffea9-5596-4742-9f5a-4a850f720b5b | SCIP notification number (Italy) | d49bce73-6715-4d98-b444-679711c15ee3 |
SCIP notification number (Netherlands) | 0175bf0f-8d9e-4f18-afd7-43d4440d1d8d | SCIP notification number (Poland) | 07e60571-bb7b-447a-90ca-0a5fc4588e2a |
SCIP notification number (Romania) | b18f85a9-7d9d-48f3-824e-f73837ce0f15 | SCIP notification number (Sweden) | e18be451-767b-4edb-abbc-451ebe189c33 |
Configuration options | DIP switch | Input signal type | Potentiometer |
Sensor types (RTD) | Pt100 | Sensor connection | 2-wire; 3-wire; 4-wire; differential |
Sensor power supply (RTD) max. | ≤?0.5?mA | Temperature measurement range (RTD) | -200 … 850 °C |
Input range (resistor) | 0 … 100?kΩ | Input range (potentiometer) | 0 … 100?kΩ |
Switching voltage (DO) max. | Supply voltage (applied): ?0.3 V | Continuous current (DO) max. | 100?mA (no internal restriction) |
Number of switching thresholds (DO) | 1 or 2 (adjustable) | Configurable rise/fall delay time (DO) | 0 … 60?s (via software) |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Number of make/switch-on contacts | 1 |
Contact material (relay) | AgNi + Au | Switching Voltage, Max. | AC?250?V |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 4ms |
Bounce time (typ.) | 8ms | Number of switching thresholds (relay) | 1 or 2 (adjustable) |
Configurable rise/fall delay time (relay) | 0 … 60?s (via software) | Software filter (adjustable) | Moving average value (filter level: 30) |
Hysteresis | Adjustable via DIP switch or software | Step response (typ.) | 60?ms (2-wire);?360?ms (3-wire);?540?ms (4-wire);?360?ms (Potentiometer) |
Transmission error (max.) | ± 1 K | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?40?mA?(+ IDO) |
Test voltage (input/relay output/supply) | 4 kVAC; 60 Hz; 1 min | Test voltage (input/service interface) | 3 kVAC; 60 Hz; 1 min |
Test voltage (relay output/service interface) | 4 kVAC; 60 Hz; 1 min | Test voltage (supply/service interface) | 2.5 kVAC; 60 Hz; 1 min |
Overvoltage category | II | Pollution degree | 2 |
Insulation type (input, supply and service interface/relay output) | Reinforced insulation (safe isolation) | Insulation type (input/supply/service interface) | Basic insulation |
Specifications may be subject to change without notice
