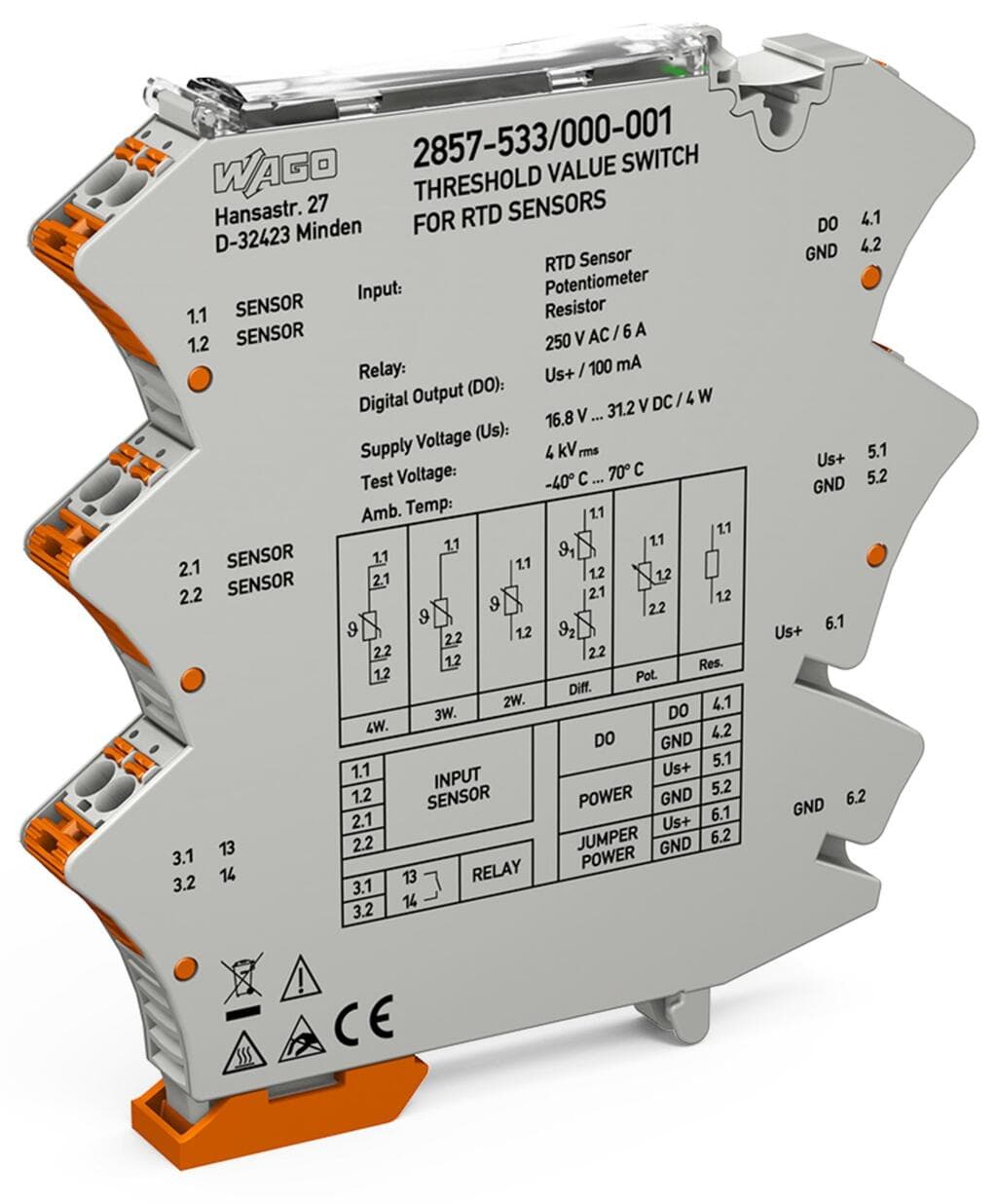

Product Model
2857-533/000-001
Selling Points
- 1High accuracy for precise threshold value detection
- 2Reliable operation in various industrial environments
- 3Easy integration with existing automation systems
- 4Compact design for space-efficient installations
- 5Compatible with a wide range of RTD sensors
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded. | Rated voltage | 300V |
Rated voltage of the measurement circuit connections per EN 61010-2-030 | AC?300 V | Note on insulation parameters | Temperature sensors are not intended for use in dangerous circuits, provided the external temperature sensors used do not have basic insulation in accordance with EN 61010-1 (300 VAC; overvoltage category II; pollution degree 2). |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
WAGO connector | picoMAX?5.0 | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG |
Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12.5?mm?/ 0.492?inches | Height | 110?mm?/ 4.331?inches |
Depth from upper-edge of DIN-rail | 107?mm?/ 4.213?inches | Mounting type | DIN-35 rail |
Fire load | 1.556MJ | Weight | 85.9g |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Temperature range of connection cable | ≥ (Tambient+ 30 K) | Relative humidity | 5 … 95?% |
Operating altitude (max.) | 2000m | Conformity marking | CE |
EMC immunity to interference | EN 61000-6-2; EN 61326-2-3; EN 50121-3-2 | EMC emission of interference | EN 61000-6-4; EN 61326-2-3; EN 50121-3-2 |
Standards/specifications | EN 61010-1 | ETIM 9.0 | EC001446 |
ETIM 8.0 | EC001446 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4066966390032 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | a1f6ebca-6ee1-4502-97a0-ca81287a2bc9 |
SCIP notification number (Belgium) | 807f8a01-2e4d-4e0c-9c71-6e8338955d40 | SCIP notification number (Bulgaria) | 3d3329a0-3e66-4ce8-ac33-2dffabba9970 |
SCIP notification number (Czech Republic) | b7d1b66f-7f24-48b2-9f05-050931d626dd | SCIP notification number (Denmark) | ec5d7e12-0adb-4474-ada9-a2ff1e97e937 |
SCIP notification number (Finland) | 7712a94a-787d-4297-b7d7-99327420f870 | SCIP notification number (France) | 101b3e36-3f6c-4e3a-bf08-2627108fd00e |
SCIP notification number (Germany) | 4c6d0c05-9dbb-4306-ac2a-42c80ad0a306 | SCIP notification number (Hungary) | da7cf922-0be7-4349-8719-d225e789f331 |
SCIP notification number (Italy) | 8b1e792f-6a2e-492e-ac79-206646d7cd82 | SCIP notification number (Netherlands) | 89b20b14-a048-4891-9e45-48a30fd47426 |
SCIP notification number (Poland) | 155b9aa7-ace0-4176-92f0-6fc03a3c598e | SCIP notification number (Romania) | 1c695032-aee4-4e17-8776-0b012226ff2b |
SCIP notification number (Sweden) | 509681b7-8017-48ab-8a20-b7682857049f | Configuration options | WAGO Interface Configuration Software |
Input signal type | Potentiometer | Sensor types (RTD) | Pt100 |
Sensor connection | 2-wire; 3-wire; 4-wire; differential | Sensor power supply (RTD) max. | ≤?0.5?mA |
Temperature measurement range (RTD) | -200 … 850 °C | Input range (resistor) | 0 … 100?kΩ |
Input range (potentiometer) | 0 … 100?kΩ | Switching voltage (DO) max. | Supply voltage (applied): ?0.3 V |
Continuous current (DO) max. | 100?mA (no internal restriction) | Number of switching thresholds (DO) | 1 or 2 (adjustable) |
Configurable rise/fall delay time (DO) | 0 … 60?s (via software) | Number of make/switch-on contacts | 1 |
Contact material (relay) | AgNi + Au | Switching Voltage, Max. | AC?250?V |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Pull-in time (typ.) | 8ms |
Drop-out time (typ.) | 4ms | Bounce time (typ.) | 8ms |
Number of switching thresholds (relay) | 1 or 2 (adjustable) | Configurable rise/fall delay time (relay) | 0 … 60?s (via software) |
Software filter (adjustable) | Moving average value (filter level: 30) | Step response (typ.) | 60?ms (2-wire);?360?ms (3-wire);?540?ms (4-wire);?360?ms (Potentiometer) |
Transmission error (max.) | ± 1 K | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24?VDC | Nominal supply voltage U<sub>S</sub> | DC?24?V (SELV) |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤?40?mA?(+ IDO) |
Test voltage (input/relay output/supply) | 4 kVAC; 60 Hz; 1 min | Test voltage (input/service interface) | 3 kVAC; 60 Hz; 1 min |
Test voltage (relay output/service interface) | 4 kVAC; 60 Hz; 1 min | Test voltage (supply/service interface) | 2.5 kVAC; 60 Hz; 1 min |
Overvoltage category | II | Pollution degree | 2 |
Insulation type (input, supply and service interface/relay output) | Reinforced insulation (safe isolation) | Insulation type (input/supply/service interface) | Basic insulation |
Altitude | A1 | Operating temperature class | OT3 |
Extended operating temperature at switch-on | ST1 | Quick temperature changes | H1 |
Power supply interruptions | S1 | Switching classes (power supply) | C2 |
Service life | L4 at 40 °C (max.) | Protective coatings for populated PCBs | PC2 |
Temporary supply voltage dips | Criterion B |
