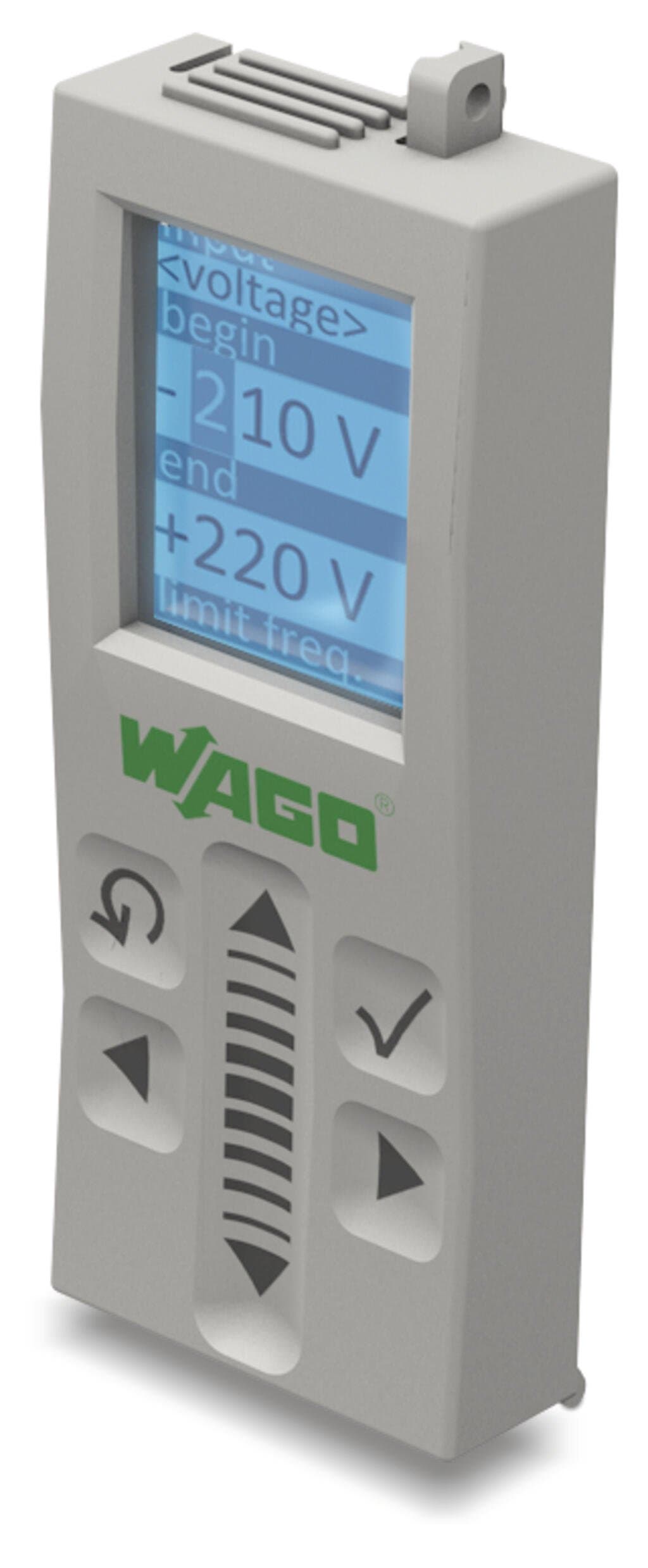

Product Model
2857-900
Selling Points
- 1Easy mounting on 2857 Series devices.
- 2Automatic module detection for seamless integration.
- 3Capacitive user interface with slider function for intuitive navigation.
- 4Multicolor backlight for status indication and device configuration.
- 5Operating voltage: DC 3.3 V, current consumption ≤ 60 mA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22?mm?/ 0.866?inches | Height | 13?mm?/ 0.512?inches |
Depth | 59?mm?/ 2.323?inches | Mounting type | Pluggable module |
Fire load | 0.115MJ | Weight | 24.3g |
Ambient temperature (operation) | -20 … +70 °C | Ambient temperature (storage) | -30 … +80 °C |
Relative humidity | 10 … 95?% (without condensation) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2; EN 61326-2-3; EN 50121-3-2 |
EMC emission of interference | EN 61000-6-4; EN 61326-2-3; EN 50121-3-2 | Standards/specifications | EN 61373 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 19-20-05-03 |
eCl@ss 9.0 | 19-20-05-03 | ETIM 9.0 | EC001418 |
ETIM 8.0 | EC001418 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4050821677017 |
Customs tariff number | 9030333400 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 244d967f-4868-4b62-ba94-2eaa365535ca |
SCIP notification number (Belgium) | 0216f16f-b067-411c-bbbc-52596353af58 | SCIP notification number (Bulgaria) | ea4556e3-83ea-4ade-922d-8cb6970bcb69 |
SCIP notification number (Czech Republic) | 854c168c-9781-4be2-9646-72104542262c | SCIP notification number (Denmark) | 866dd55f-8e34-41e9-ac5c-146ea07ba65a |
SCIP notification number (Finland) | 9614662e-a7b0-4d9a-8c44-809737796a89 | SCIP notification number (France) | 5c4f335a-bf70-48d6-a9f4-33bfabfa2e10 |
SCIP notification number (Germany) | 1f208f5d-ccf6-449a-bf64-aeb4eae25047 | SCIP notification number (Hungary) | 2ab6477c-f0cb-4c34-963b-7b07f783372b |
SCIP notification number (Italy) | 48fbca09-b8cd-49fc-a484-606c5f52c405 | SCIP notification number (Netherlands) | 01b3c2d7-02a7-4eef-a972-7a7f8256d053 |
SCIP notification number (Poland) | ab20e134-c6e2-4d85-b20d-b3600849f878 | SCIP notification number (Romania) | 09ebf687-158f-4727-9636-a90863afca83 |
SCIP notification number (Sweden) | e9d96084-dd49-41ef-8b02-9768510a64e1 | Operating voltage | 3.3?VDC |
Current consumption | ≤?60?mA |
Specifications may be subject to change without notice
